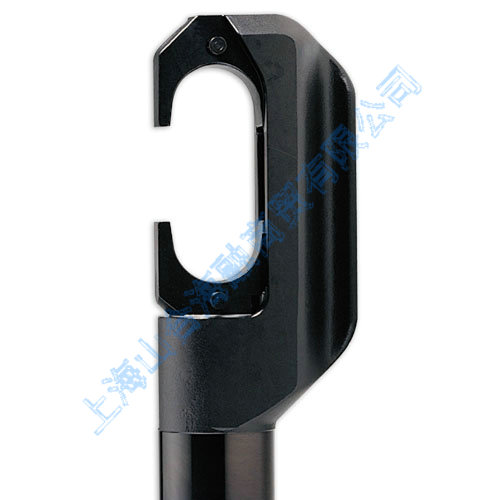

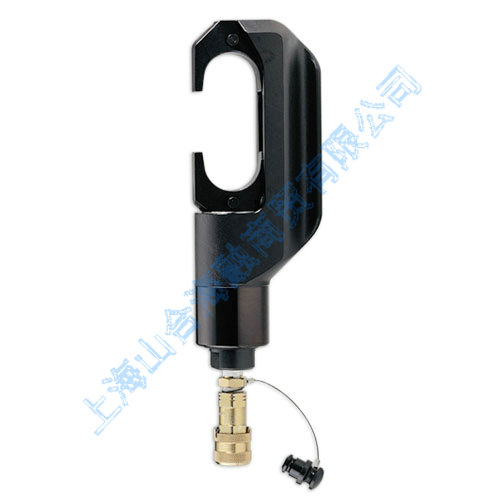

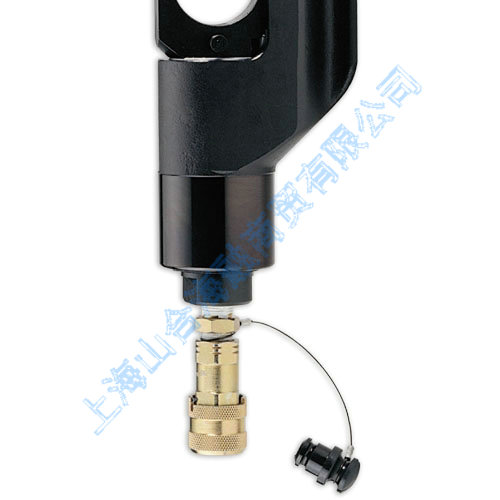

Product Name : HYCP-15THE
Enlargement
Product Character
Model No. HYCP-15THE

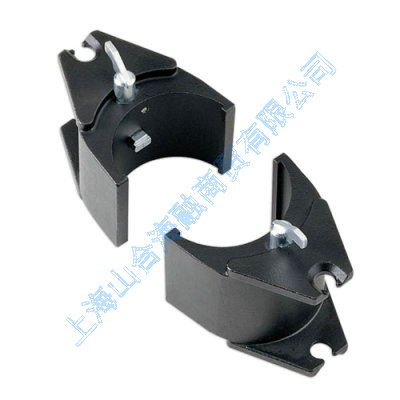

• Adding adaptor ADP-15THE can interchange with
dies used up to 12 ton die sets
• Dies sold separately.
(CU 16/25/35/50/70/95/120/150/185/240/300/400)
Specifications:
• Max. Pressure: 700 bar
• Oil Required: 107 cc
• Max. Output: 14.1 ton / 139 KN
• Ram Stroke: 50 mm
• Jaw Opening: 50 mm
(45 mm with die adaptor ADP-15THE)
• Dimension: 375 (L)mm
• Weight: 6.8 kgs
Benefits:
• Adding adaptor ADP-15THE can interchange with
all dies used for Alcoa, Burndy, T&B, Klauke,
Cembre and Blackburn 12 ton compressors
• Can be operated by any single acting hydraulic pump
(with the max, oil pressure of 700 bar or 10,000 psi)
Packing:
• Kudos plastic case
