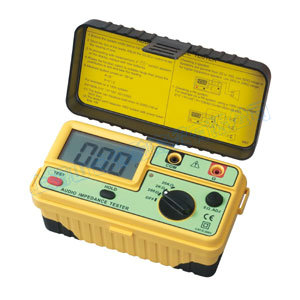

1107 IM   Audio Impedance Tester
1107 IM
FEATURES

 Large LCD display 68 x 34 mm (1.338" x 2.677")
 True measurement of speaker systems actual impedance at 1kHz
 Three test ranges allow testing of home theatre and commercial sound systems
 Measures transformer impedances
 Battery operation
 Low battery indication
 Data hold function
 0 Ohm adjustment
 EN 61010-1 CAT III 200V, EN 61326-1, EN 61326-2-1, EN 61326-2-2
 It is recommended a drawing be first made of speaker system to verify proper installation
 Take care to ensure that the system is not connected to the amplifier
 Ensure the system under test is not live
 Check batery, of sysmbol appears on the display, replace with new batteries
 Short the tips of the leads, adjust the "0 Ohm ADJ", control to set the reading of zero
 Connect test leads to speaker or speaker leads. Note : Speakers may be connected together either in series or parallel to achieve desired final impedance
 Rotate the function switch to a suitable range then press the push button to test and take the reading
SPECIFICATIONS

Measuring Ranges 0-200 Ohm/ 0-2k Ohm/0-20k Ohm
Test Frequency 1k Hz
Accuracy 200 Ohm/2k Ohm : +/- 2% rdg +/- 2 dgt
20K Ohm/2k Ohm : +/- 3% rdg +/- 2 dgt
Low Battery Indication Symbol appears on the display
Data Hold Indication Symbol appears on the display
Display LCD 3-1/2 digit (2000 counts)
Dimensions 175 (L) x 85 (W) x 75 (D) mm
Weight Approx. 600g (battery included)
Power Source 1.5V SUM-3 (AA) x 8 or equivalent
Accessores Test leads, carrying case, instruction manual, batteries
特 點
● 寬廣型的液晶顯示器(68 x 34mm)。
● 操作頻率為1KHz。
● 三檔量測檔位,適合家庭劇院和商業音響系統的測試。
● 可以量測變壓器的內阻。
● 使用乾電池提供電源。
● 低電源顯示設計。
● 讀值鎖定功能。
● 0Ω歸零調整設計。

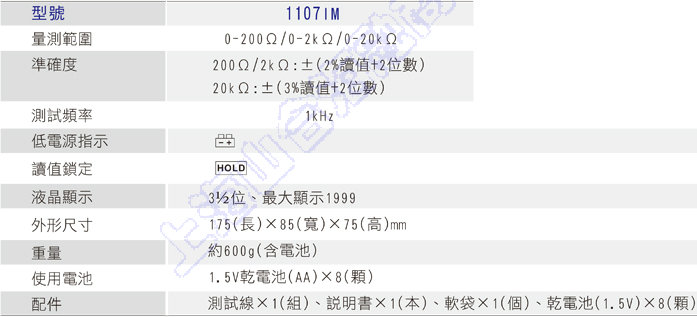

規 格 (23°C±5°C <80%R.H.)
