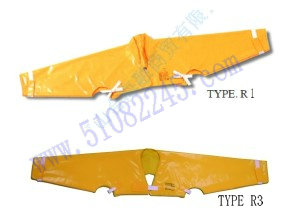

HIGH VOLTAGE PLASTIC INSULATING JACKETS高压塑料绝缘夹克（绝缘衣）
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ITEM NO. 型号 |
SIZE 尺寸 |
A.C.PROOF TEST VOLTAGE 测试电压 |
A.C.MAXIMUM USE VOLTAGE Z大使用电压 |
APPLICABLE 适用 |
|---|---|---|---|---|
| YS121-01-03 | L | 20KV / 1min | 7000V | PLASTIC INSULATING JACKETS TYPE-R R型塑料绝缘夹克/绝缘衣 |
| YS121-01-04 | M | 20KV / 1min | 7000V | PLASTIC INSULATING JACKETS TYPE-R R型塑料绝缘夹克/绝缘衣 |
| YS121-01-05 | S | 20KV / 1min | 7000V | PLASTIC INSULATING JACKETS TYPE-R R型塑料绝缘夹克/绝缘衣 |
| YS126-01-05 | L | 20KV / 3min | 17000V | PLASTIC INSULATING JACKETS TYPE-R R型塑料绝缘夹克/绝缘衣 |
| YS126-01-04 | M | 20KV / 3min | 17000V | PLASTIC INSULATING JACKETS TYPE-R R型塑料绝缘夹克/绝缘衣 |
| YS126-01-03 | S | 20KV / 3min | 17000V | PLASTIC INSULATING JACKETS TYPE-R R型塑料绝缘夹克/绝缘衣 |
| YS126-08-04 | L | 20KV / 3min | 17000V | PLASTIC INSULATING JACKETS TYPE-R3 R3型塑料绝缘夹克/绝缘衣 |
| YS126-08-03 | M | 20KV / 3min | 17000V | PLASTIC INSULATING JACKETS TYPE-R3 R3型塑料绝缘夹克/绝缘衣 |
| YS126-08-02 | S | 20KV / 3min | 17000V | PLASTIC INSULATING JACKETS TYPE-R3 R3型塑料绝缘夹克/绝缘衣 |
EVA INSULATING JACKETS TYPE-J5 EVA绝缘衣/绝缘夹克J5型
The EVA INSULATING JACKETS are used for protection of electrical workers from electric shock while working on a live electric line.
EVA绝缘衣/绝缘夹克J5型是用于防止电力操作人员在带电操作时受到电击的危险。
These are structured by external sheets coated nylon cloth with E.V.A. (Ethylene-Vinyl Acetate copolymers) has high insulation property and internal E.V.A. films, these have moderate mechanical strength and enough pliability.
EVA绝缘衣/绝缘夹克J5型外面采用E.V.A（乙烯-醋酸乙烯酯共聚物-即聚乙烯材料）尼龙涂面，具有很强的绝缘性能，里面的一层E.V.A层具有中等机械强度和足够的KK性。
| ITEM NO. 型号 |
SIZE 尺寸 |
A.C.PROOF TEST VOLTAGE 测试电压 |
A.C.MAXIMUM USE VOLTAGE Z大使用电压 |
|---|---|---|---|
| YS-121-39-04 | L | 20kV/1min | 7000V |
| YS-121-39-03 | M | 20kV/1min | 7000V |
| YS-121-39-02 | S | 20kV/1min | 7000V |
| YS-124-06-04 | L | 20kV/3min | 17000V |
| YS-124-06-03 | M | 20kV/3min | 17000V |
| YS-124-06-02 | S | 20kV/3min | 17000V |
| YS-124-07-04 | L | 30kV/3min | 26500V |
| YS-124-07-03 | M | 30kV/3min | 26500V |
| YS-124-07-02 | S | 30kV/3min | 26500V |

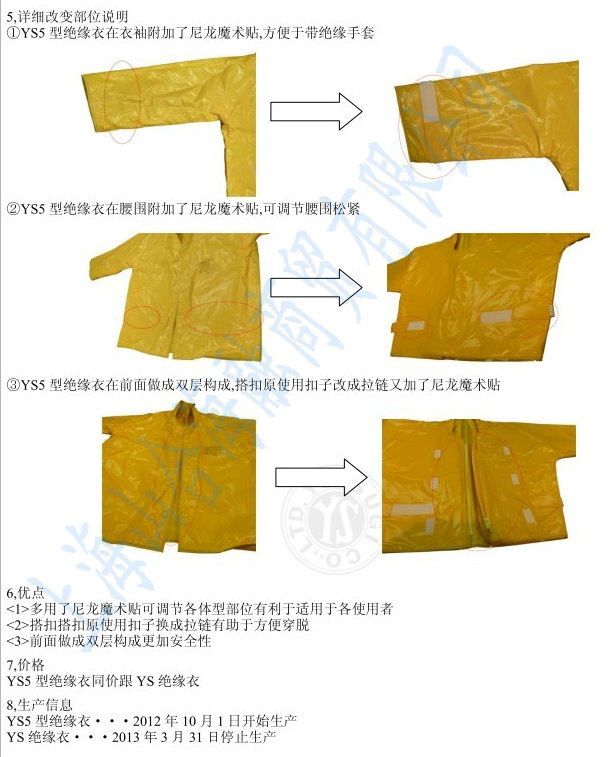

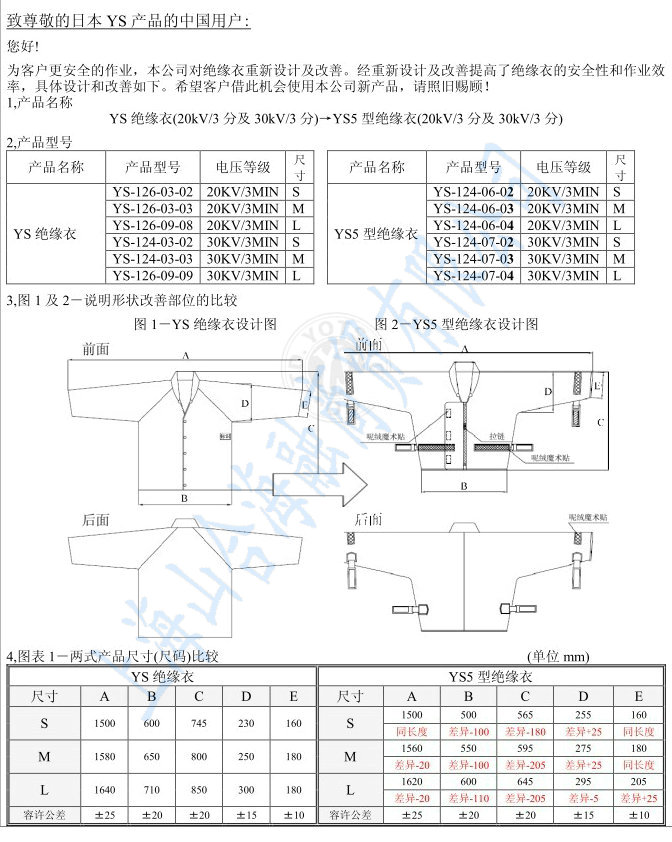

| 日本YS生产的20KV/3MIN和30KV/3MIN绝缘衣已重新设计，具体替代型号如下： 原型号YS-126-03-02 20KV/3MIN S → 新型号YS-124-06-02 20KV/3MIN S 原型号YS-126-03-03 20KV/3MIN M → 新型号YS-124-06-03 20KV/3MIN M 原型号YS-126-09-08 20KV/3MIN L → 新型号YS-124-06-04 20KV/3MIN L 原型号YS-124-03-02 30KV/3MIN S → 新型号YS-124-07-02 30KV/3MIN S 原型号YS-124-03-03 30KV/3MIN M → 新型号YS-124-07-03 30KV/3MIN M 原型号YS-126-09-09 30KV/3MIN L → 新型号YS-124-07-04 30KV/3MIN L   |
|||

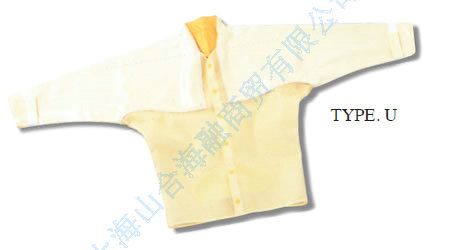

HIGH VOLTAGE PLASTIC INSULATING JACKETS高压塑料绝缘衣/绝缘夹克
TYPE U（U型）
| ITEM NO. 型号 |
SIZE 尺寸 |
A.C.PROOF TEST VOLTAGE 测试电压 |
A.C.MAXIMUM USE VOLTAGE Z大使用电压 |
APPLICABLE 适用 |
|---|---|---|---|---|
| YS126-09-05 | L | 20KV / 1min | 7000V | PLASTIC INSULATING JACKETS TYPE-U U型塑料绝缘衣/绝缘夹克 |
| YS121-04-13 | M | 20KV / 1min | 7000V | PLASTIC INSULATING JACKETS TYPE-U U型塑料绝缘衣/绝缘夹克 |
| YS121-04-19 | S | 20KV / 1min | 7000V | PLASTIC INSULATING JACKETS TYPE-U U型塑料绝缘衣/绝缘夹克 |
| YS126-09-06 | L | 20KV / 3min | 17000V | PLASTIC INSULATING JACKETS TYPE-U U型塑料绝缘衣/绝缘夹克 |
| YS126-02-04 | M | 20KV / 3min | 17000V | PLASTIC INSULATING JACKETS TYPE-U U型塑料绝缘衣/绝缘夹克 |
| YS126-02-03 | S | 20KV / 3min | 17000V | PLASTIC INSULATING JACKETS TYPE-U U型塑料绝缘衣/绝缘夹克 |

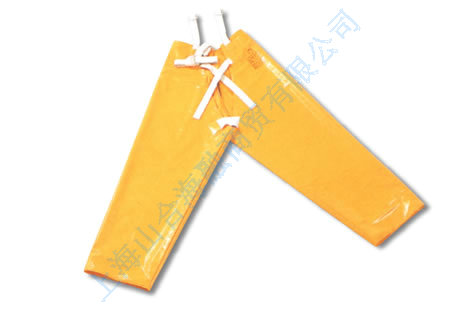

HIGH VOLTAGE PLASTIC INSULATING TROUSERS高压塑料绝缘裤
| ITEM NO. 型号 |
SIZE 尺寸 |
A.C.PROOF TEST VOLTAGE 测试电压 |
A.C.MAXIMUM USE VOLTAGE Z大使用电压 |
APPLICABLE 适用 |
|---|---|---|---|---|
| YS128-01-05 | L | 20KV / 1min | 7000V | PLASTIC INSULATING TROUSERS 高压塑料绝缘裤 |
| YS122-01-01 | M | 20KV / 1min | 7000V | PLASTIC INSULATING TROUSERS 高压塑料绝缘裤 |
| YS122-01-02 | S | 20KV / 1min | 7000V | PLASTIC INSULATING TROUSERS 高压塑料绝缘裤 |
| YS128-01-06 | L | 20KV / 3min | 17000V | PLASTIC INSULATING TROUSERS 高压塑料绝缘裤 |
| YS127-01-04 | M | 20KV / 3min | 17000V | PLASTIC INSULATING TROUSERS 高压塑料绝缘裤 |
| YS127-01-03 | S | 20KV / 3min | 17000V | PLASTIC INSULATING TROUSERS 高压塑料绝缘裤 |
| YS128-01-07 | L | 30KV / 3min | 26500V | PLASTIC INSULATING TROUSERS 高压塑料绝缘裤 |
| YS128-01-04 | M | 30KV / 3min | 26500V | PLASTIC INSULATING TROUSERS 高压塑料绝缘裤 |
| YS128-01-03 | S | 30KV / 3min | 26500V | PLASTIC INSULATING TROUSERS 高压塑料绝缘裤 |
