1126 IN   Insulation Testers
Up To 1 kV (Analog)

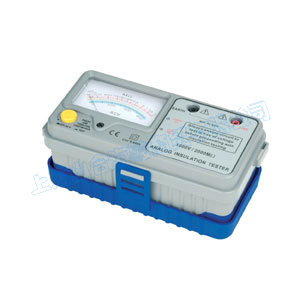

1126 IN
FEATURES

 High quality Taut Band movement.
 It is a light and portable combination instrument for testing insulation (M Ohm) and AC voltage.
 LED indication works when testing insulation.
 Use a high efficiency and accurate DC-Dc converter.
 Battery check facility.
 AC voltage measurement can be made without depressing the test button.
  CAT III 600V.
SPECIFICATIONS

INSULATION RESISTANCE
Test Voltage (DC V) 1000V
Output Voltage on Open Circuit Rated test voltage +10%
Measuring Ranges (Mid-scale value) 0 - 2000M Ohm (50M Ohm)
Accuracy 2 - 1000M Ohm +/- 5% rdg, 0.7% of scale length at other ranges
Short Circuit Current 1 mA
AC VOLTAGE
Range 0 - 600V
Accuracy +/- 2.5% of full scale
GENERAL
Operating Temperature & Humidity 0 degree ~ 40 degree C relative humidity up to 85%
Storage Temperature & Humidity - 0 degree ~ 50 degree C relative humidity up to 75%
Power Source 1.5V (SUM-3. R6. AA) x 8
Dimensions 175(L) x 85(W) x 75(H) mm
Weight Approx. 560g (battery included)
Accessories Test leads
Instruction manual
Carring case (Optional)
Shoulder belt
Batteries
特 點

● 吊線式高品質防震表頭。
● 具有絕緣阻抗(MΩ)和交流電壓(ACV)量測等兩種功能。
● 絕緣阻抗量測時,有紅燈(LED)指示。
● 電池電源大小檢查功能設計。
● 交流電壓量測不必按鍵可直接量測。
● 輕便、堅固、易於攜帶使用和收藏。
● 符合安規 CAT Ⅲ 500V
EN61326-1

規 格 (23°C±5°C <80%R.H.)
絕緣阻抗(MΩ)
量測電壓(DCV) 1000V
量測電壓Z大容許 額定電壓 +10%
量測範圍 0-2000MΩ
中間刻度 50MΩ
準確度 2~1000MΩ: ±5%讀值
其他範圍:±0.7%刻度長
短路電流 1mA
交流電壓(ACV)
量測範圍 0-500V
精確度 ± 2.5% 滿刻度
一般敘述
操作溫濕度 0°C ~ 40°C Z大相對濕度85%
儲存溫濕度 -10°C ~ 50°C Z大相對濕度85%
外形尺寸 175(長)×85(寬)×75(高)mm
重量 約560克(含電池)
使用電池 1.5V (AA) × 8 (顆)
