276S HD   High Voltage Testers
H.V. Detector
230mm to 880mm

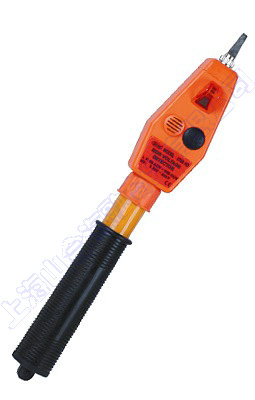

276S HD
FEATURES

 Telescopic, compact, light-weight : Length : from 230mm to 880mm. Weight : Approx. 155g
 High-voltage detectable : The equipment, whether in stretched state is available for voltage detection in high-tension circuits (3.3kV, 6.6kV and 24kV) whether the wires involved are naked or insulated.
 Low-voltage detectable : The equipment can be used for voltage detection in low-tension circuits (80V ~ 600V) by holding the nameplate portion of the detecting head. Before-use check can easily be done by plugging in an AC 100V plug socket, without using a tester.
 Easy to recognize indication : Intermittent lighting in red of a high intensity light-emitting diode and intermittent audible sound of an electronic buzzer are readily recongnizable at a full daylight, noisy location.
 Waterproof : The detecting head, being tightly enclosed, is free from any trouble due to dust, dirt, water or the like.
 Dielectric strength :
 (a) Between Sensing tip ~ Grip portion : 50kVAC, 1 min (The detector has to be stretched).
 (b) Between Sensing tip ~ Nameplate portion : 4kV AC, 1 min.
 Construction : Waterproof (detecting head impervious to water).
 Insulation resistance : Measure the insulation resistance with the high voltage insulation tester. The areas we measure are the same as dielectric strength test.
 (a) Between Sensing tip ~ Grip portion : 1kV (The detector has to be stretched). The insulation resistance has to be more than 2000M Ohm.
 (b) Between Sensing tip ~ Nameplate portion : 1kV. The insulation resistance has to be more than 2000M Ohm.
 Leakage current test : Put high voltage on the parts listed below.
 (a) Between Sensing tip ~ Grip portion : 50kV AC, 1 min (The detector has to be stretched). The leakage current has to be 100uA or less than 100uA.
 (b) Between Sensing tip ~ Nameplate portion : 4kV AC, 1 min. The leakage current has to be 100uA or less than 100uA
 Meets
 This model 276 HD detects the presence of voltage in AC lines. An elongate insulation rod permits checking of high tension circuits at safe distance for voltage.
 The equipment is compact, light weight, and easy to handle, and is also available for voltage detection in low-tension circuits.
SPECIFICATIONS

Working Voltage Range H.V. : 3kV ~ 24kV AC ...... hold grip portion to detect.
L.V. : 80V ~ 600V AC ...... hold anmeplate portion to detect.
Frequency 50Hz / 60Hz
Operation Test (Initial voltage) (a) When stretched, hold the grip portion. Put the sensing tip in contact with the voltage : 250V AC +/- 50V the LED and buzzer should work.
(b) When retracted, hold the nameplate portion. Put the sensing tip in contact with the voltage : 80V AC or below the LED and buzzer should work.
Operation start distance Distance at which operation starts when front metal is brought near dia. 5mm O.C. wire with grip portion meld by hand.
Where 24kV / dia. 3mm (voltage to ground) ...... abt 20 cm.
Where 6.6kV / dia. 3mm (voltage to ground) ...... abt 3 cm.
Where 3.3kV / dia. 3mm (voltage to ground) ...... abt 1 cm.
Woking temperature rang -10 degree C ~ +50 degree C
Battery 2 button-cells LR44 (1.5V)
特 點
● 使用伸縮桿,方便使用與存放,全部伸展長度為880±50mm,握把直徑為26±3mm。
● 材質輕巧堅固,絕緣度良好,材質經台灣大電力研究試驗中心100kV/30cm,5分鐘耐壓測試通過。
● 具有自我測試功能設計,可判斷驗測前儀器的功能是否正常。
● 高低電壓均可驗測。
● 操作方便,判斷簡易。
● 作防水設計,具保護作用,儀器不易損壞。.
●紅色燈光(LED)晝夜警示、明亮度高。蜂鳴器警告音量在2公尺距離時達50dB以上
規 格

節數

7

操作溫濕度

0°C~40°C Max: 80%

縮短全長(公尺)

255±30mm

伸展全長(公尺)

870±30mm

適用頻率

50/60 Hz

重量

約150克(含電池)

使用電池

鈕扣型LR44(1.5V) x 2個
