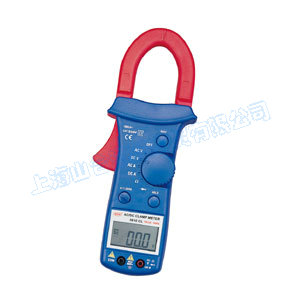

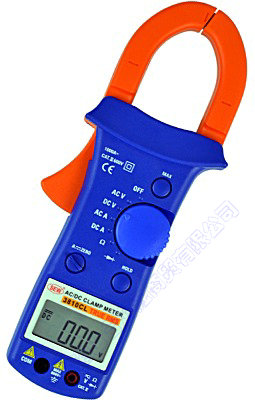

台湾标准电机SEW仪器仪表--3810 CL TURE RMS AC/DC Digital Clamp Meter (Auto Range)



3810 CL   Clamp Meters
Digital Clamp Meter
TURE RMS AC/DC Digital Clamp Meter (Auto Range)
3810 CL
FEATURES

 Full auto range for V.A and Ohm functions.
 Data hold function freezes the reading in dimly lit or hard to reach places.
 Low battery indication.
 Built-in buzzer for continuity test.
 Safety design throughout with no exposed metal parts. Shielded banana plugs and recessed input terminals.
 Ohm function ideal for checking continuity of relays transformers and motor coils.
SPECIFICATIONS

ACA 400/1000A +/- (1.5%rdg+3dgt): 400-500Hz
ACV 400/600V +/- (1.0%rdg+3dgt): 40-500Hz
DCA 400/1000A +/- (1.5%rdg+3dgt)
DCV 400/600V +/- (0.75%rdg+3dgt)
Ohm 2000 Ohm +/- (1.0%rdg+3dgt)
Buzzer Sounds < 100 Ohm
Conductor Size 40mm Max.
Low Battery Indication yes
Dimensions 255(L) x 80(W) x 35(H) mm
Weight Appox. 420g (battery included)
Power Source 9V (6F22.006P) x 1 battery
Accessories Test leads (TEL-AL28-1), carrying case (CAC-3600), instruction manual, battery
Safety Standard , CAT III 600V
特 點
● 供量測電壓、電流和導通測試。
● 具有數值鎖定功能、在昏暗處或不方便識讀地方量測,可將量測值鎖定,再移至光亮處
或方便處識讀。
● 均為自動換檔。
● 導通測試時,設計有蜂鳴器響應功能。
● 低電源顯示。
規 格 (23°C±5°C <80%R.H.)
