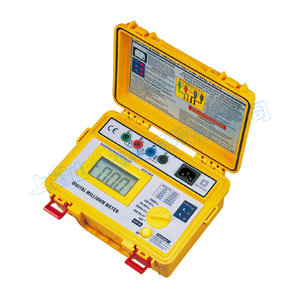

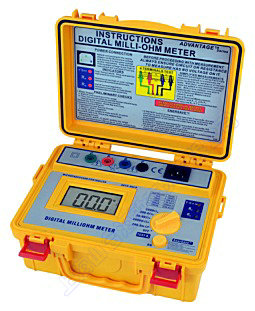

4136 mO   Low Resistance Ohm Testers
4136 mO
FEATURES

 Four terminal measurement.
 Measures down to 100u Ohm.
 5 Ranges from 200.0M Ohm to 2000 Ohm.
 Maximum resolutio of 100u Ohm.
 Three test current with over-temperature protection.
 Protection against inadvertent connection to over-voltage.
 Large LCD.
 Potential lead resistance, current lead resistance checks.
 "Full-Featured" EnerSave (tm) indide.
 EnerSave (tm) Auto-Hold.
 EnerSave (tm) Auto-Off.
 Lightwight, robust & compact.
 Indicators show if reading may be invalid (Rp, Rc, and temperature).
 "O-Ring" sealed case.
 Future optional rechargeable battery.
 , EN 61326-1, EN 61326-2-1, EN 61326-2-2, CISPR II, EN 61000-4-2, EN 61000-4-3
SPECIFICATIONS

Measuring Ranges 0-200.0M Ohm in steps of 100u Ohm
0-2000M Ohm in steps of 1M Ohm
0-20.00 Ohm in steps of 10M Ohm
0-200.0 Ohm in steps of 100M Ohm
0-2000 Ohm in steps of 1 Ohm
Accuracy +/- 0.5% of reading +/- 2 digits over the operating temperature range, -15 degree C to +55 degree C with the supplied test leads
Test Current 1mA => 2000 Ohm range
10mA => 200/20 Ohm ranges
100mA => 2000/200M Ohm ranges
Test Current Accuracy +/- 0.1%
Power Source 110VAC or 230VAC
Protection Fuses Mains = 0.5A, HBC, 5 x 20mm, DIN
Current = 0.5A, HBC, 5 x 20mm, DIN
Voltage = 0.5A, HBC, 5 x 20mm, DIN
Maximum Output Voltage (C1-C2) 20V
Dimensions 205(L) x 190(W) x 110(D)mm
Weight Appox. 1530g
Accessories Test leads
Shoulder belt (BET-2800)
Instruction manual
特 點
● 使用電源:110V/230V交流電
● 使用四個端點量測。
● Z低可量測至100uΩ
● 量測檔位從200.0mΩ到2000Ω共五檔。
● 過溫保護設計。
● 過壓保護設計。
● 使用寬廣型液晶顯示器,容易識讀。
● 電源耗電微小。
● 自動讀值鎖定設計。
● 自動關機。
● 通過歐洲安全規範驗証:
EN 61010-1 CAT Ⅳ 20V
EN 61326 -1
規 格 (23°C±5°C <80%R.H.)
TEL-4136C


TEL-4136C测试线 規 格
● 名稱 : 凱文測試線(Kelvin clip test lead)
● 線材 :
長度 : 700±30mm
材質 : PVC 絕緣線,連接插頭部份為10公分的矽膠線
外徑 : 4mm
●Input plug顏色 : 紅色、綠色、黑色、藍色
