ED-205   Panel Meters
Bench Type

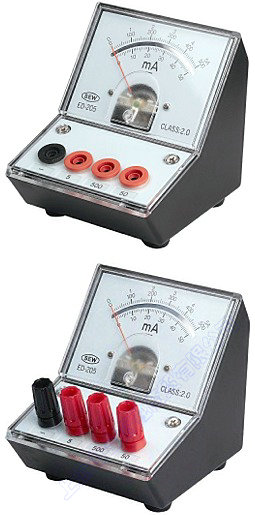

ED-205
FEATURES

 Precision meters for plant maintenance, field servicing and educational purposes.
 Multi terminals (4mm socket) for range selection.
 Carbon pointer, mirror scale to eliminate parallax error.
 Safety Standard: CAT III 600V, EN 61326-1, EN 61000-4-2, EN 61000-4-3

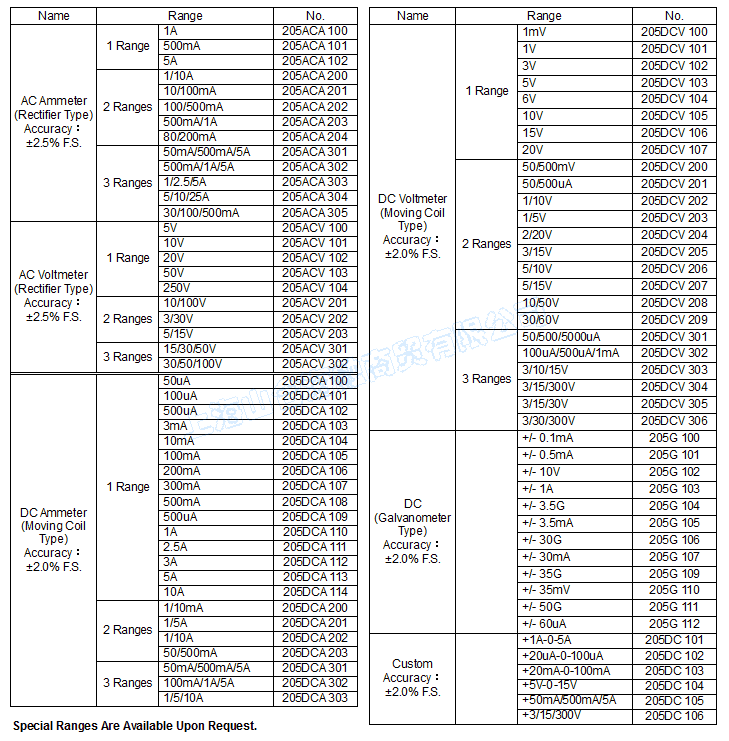

SPECIFICATIONS

Dimensions 91(L) x 103(W) x 100(D)mm.
Scale Length Approx. 65mm (deflection angle : 90 degree)
Terminal 4mm socket captive head, suitable for wire or pin-type test lead.
Material and Color Acrylic resin meter cover, white scale plate, plastic stand in black.
● 提供為學校的電學教學和訓練,工廠、農牧場電力設備比對和維護
● 外型尺寸 : 91(長) × 103(寬) × 100(高)公厘
● 刻度長 : 65公厘
● 指示角度 : 90°
● 多功能式或隱藏式的極插座
●材質:壓克力蓋,外殼ABS,刻度板白底黑字
● 通過歐洲安全規範驗證:
CAT Ⅱ 300V
EN 61326-1 EN 61000-4-2 EN 61000-4-3
