DEL-101 (DUMBO)   Multi-purpose ELCB/RCD/Wiring/Appliance Tester

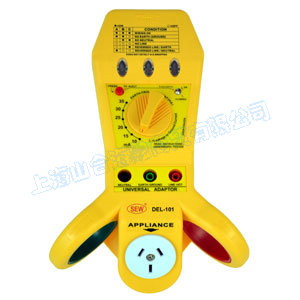

DEL-101 (DUMBO)

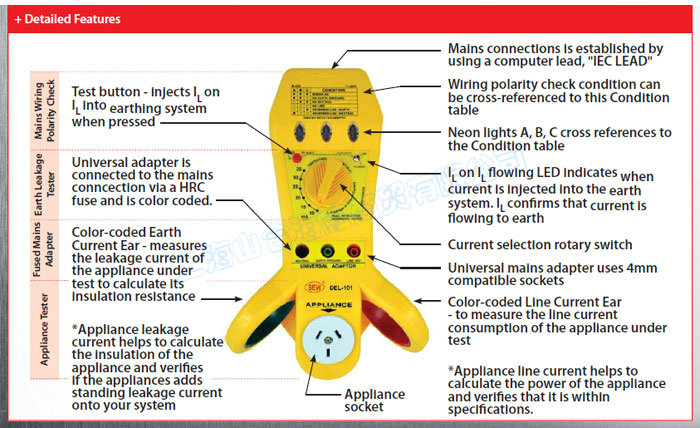

FEATURES

 Mains wiring polarity check.
 ELCB/RCD testing.
 Measuring ear for line current.
 Helps calculate insulation resistance.
 Helps caluculate power consumption.
 Helps fault finding of standing earth fault.
 Fused main adapter.
 Appliance testing (with the aid of a clamp meter).
 Fused appliance socket.
 No batteries required.
 HRC fuse indise.
 Fused, color-coded universal test sockets.
 Universal mains IEC Lead.
SPECIFICATIONS

Volgtage/Power Input Universal IEC LEAD 240V/10A
Wiring Polarity Check Nominal Voltage 240Vac, Frequency 50/60Hz, Mains Voltage Tolerance +/- 10%
ELCB/RCD Tester Nominal Voltage 240Vac, Frequency 50/60Hz, Current Tolerance Proportional (current proportional to Line to Earth Voltage)
Universal Test Sockets Norminal Voltage 240Vac, Frequency 50/60Hz, Mains Voltage Tolerance +/-10%, Fuse 10A
Appliance Tester Nominal Voltage 240Vac, Frequency 50/60Hz, Mains Voltage Tolerance +/- 10%, Fuse 10A
Appliance Line Current Coil Measured by Fuse, Current Clamp Type
Appliance Earth Current Coil Measured by Fuse, Current Clamp Type
Dimensions 223 (L) x 152 (W) x 67 (D) mm
Weight Approx. 318g
Accessories (for use with appliance test feature) Leakage Clamp
