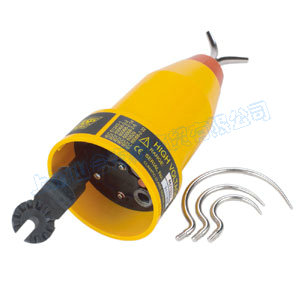

213 HVD ~ 225 HVD   High Voltage Testers
H.V. Capacitive Detector
213 HVD ~ 225 HVD
FEATURES

 Excellent shock resistance.
 Rugged nylon moulding.
 Auto-ON (when voltage detected).
 Excellent drop resistance.
 Good vibration resistance.
 Loud sound alarm indication.
 Built-in proving and self-test circuit.
 High bright color coded LEDs.
 Works from normal 9V battery.
 Interchangeable contact electrode.
 Use in all whether conditions.
 Compatible with all link sticks.
 Light weight, robust & compact.
 Models available from 11kV to 132kV.
 Suitable for indoor and outdoor use.
 Self (Auto-ON) or manual arming.
 Easy access to batteries.
 Customized threshold on demand.
 Auto-OFF (if no voltage detected).
 Meets
 This family of Capacitive High Voltage Detectors has been designed to meet the standards. Our HVD are self-starting and automatically activated when the High Voltage is applied to the contact electrode.
 They can also be manually armed before use by depressing the "TEST/ARMING" button. These detectors are intended for use on sinusoidal (50 or 60Hz) High Voltage Systems.
 Models are available to cover systems voltage from 11kV to 132kV. Our Detectors are utilized to determine if a system is live or not, so that it maybe safely earthed/grounded.
 All our models are designed for outdoor use, but can be utilized indoor and in all wheather condition. This family of capacitive High Voltage Detectors are housed in a rugged, reinforced nylon moulded casing and are shock drop and vibration resistant.
 Non-standard threshold voltages can be customized to suit applications requirements. The HVD has a low battery detection which inhibit manual arming when the battery is too low.
 The Nylon case is easy to clean and maintain and the HVDs are supplied with the cleaning kit. A visual indication shows when the HVD is armed. When armed, the green LEDs flashes about twice per second.
 When HV is detected, the red LEDs flashes approximately twice per second and the buzzer will also sound intermittently.
 A range of accessories is available.

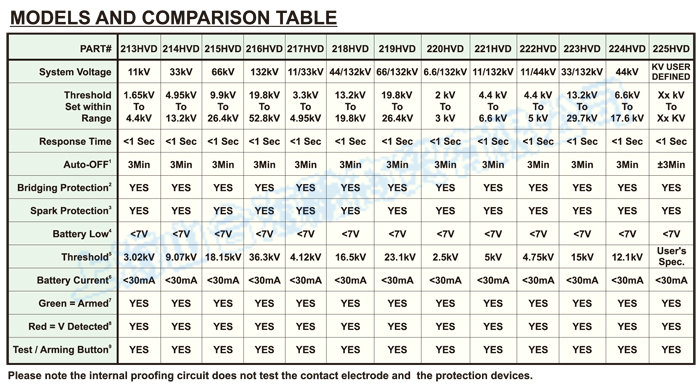

SPECIFICATIONS

Dimensions 300(L) x 100(W) x 100(D) mm
Weight Approx. 550g (battery included)

型号列表:213HVD 214HVD 213HVD 215HVD 216HVD 217HVD 218HVD 219HVD 220HVD 221HVD 222HVD 223HVD 224HVD 225HVD 226HVD
特 點

本高壓檢測計之設計。當接觸電極有高電壓時,213 HVD會自行啟動自動作業。也可以在使用前按壓”測試/啟動”鍵,以人工方式啟動,213 HVD適用於正弦波(50/60Hz)的高壓系統,從11kV~132kV的範圍都有適用的型號。
● 堅固外殼、抗震、抗摔。
● 可搭接各種絕緣連接棒。
● 偵測到電壓時,自動展開作業。
● 可依客戶需求設定起動點。
● 高亮度彩色顯示LED。
● 室內和室外皆適用。
● 內建驗證和自我測試電路。
● 防水設計。
● 蜂鳴器響應分貝高。
● 輕巧、堅固。

規 格

型 號

212HVD

213HVD

214HVD

215HVD

216HVD

適用系統電壓(ACV)

4/15kV

11kV

33kV

66kV

132kV

起時反應電壓(kV)

1.9kV
To
2.1kV

1.65kV
To
4.4kV

4.95kV
To
13.2kV

11kV
To
13kV

11kV
To
13kV

Response Time

<1 Sec

<1 Sec

<1 Sec

<1 Sec

<1 Sec

Auto-OFF

3Min

3Min

3Min

3Min

3Min

Bridging
Protection

YES

YES

YES

YES

YES

Spark Protection

YES

YES

YES

YES

YES

Battery Low

<7V

<7V

<7V

<7V

<7V

Threshold

2.0kV

3.02kV

9.07kV

12kV

12kV

Battery Current

<30mA

<30mA

<30mA

<30mA

<30mA

Green = Armed

YES

YES

YES

YES

YES

Red = V Detected

YES

YES

YES

YES

YES

Test / Arming Button

YES

YES

YES

YES

YES

型 號

217HVD

218HVD

219HVD

220HVD

221HVD

適用系統電壓(ACV)

11/33kV

44/132kV

66/132kV

6.6/132kV

11/132kV

起時反應電壓(kV)

3.3kV
To
4.95kV

11kV
To
13kV

11kV
To
13kV

2kV
To
3kV

4.4kV
To
6.6kV

Response Time

<1 Sec

<1 Sec

<1 Sec

<1 Sec

<1 Sec

Auto-OFF

3Min

3Min

3Min

3Min

3Min

Bridging
Protection

YES

YES

YES

YES

YES

Spark Protection

YES

YES

YES

YES

YES

Battery Low

<7V

<7V

<7V

<7V

<7V

Threshold

4.12kV

12kV

12kV

2.5kV

5kV

Battery Current

<30mA

<30mA

<30mA

<30mA

<30mA

Green = Armed

YES

YES

YES

YES

YES

Red = V Detected

YES

YES

YES

YES

YES

Test / Arming Button

YES

YES

YES

YES

YES

型 號

222HVD

223HVD

224HVD

225HVD

226HVD

適用系統電壓(ACV)

11/44kV

33/132kV

44kV

kV USER
DEFINED

12/36kV

起時反應電壓(kV)

4.4kV
To
5kV

11kV
To
13kV

6.6kV
To
17.6kV

Xx kV
To
Xx Kv

5.0kV
To
6.0kV

Response Time

<1 Sec

<1 Sec

<1 Sec

<1 Sec

<1 Sec

Auto-OFF

3Min

3Min

3Min

3Min

3Min

Bridging
Protection

YES

YES

YES

YES

YES

Spark Protection

YES

YES

YES

YES

YES

Battery Low

<7V

<7V

<7V

<7V

<7V

Threshold

4.75kV

12kV

12kV

User’sSpec

5.4kV

Battery Current

<30mA

<30mA

<30mA

<30mA

<30mA

Green = Armed

YES

YES

YES

YES

YES

Red = V Detected

YES

YES

YES

YES

YES

Test / Arming Button

YES

YES

YES

YES

YES
