Designed for RJ45/RJ11 modular cables 10/100 base-T cable and Token Ring cable etc.
The LAN cable tester can verify cable continuity, open, short circuit and miss-wired.
The remote receiving unit is available for installed cables far away either on the wall plates or on the patch panels.
Auto and manual scan function.
Ground wire test.
Lock status function.
Buzzer sound warning for wire status.
Display : LED indication for wire status.

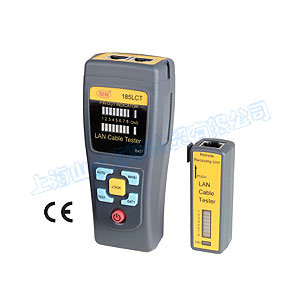

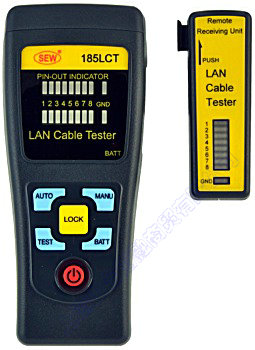

The 185LCT LAN cable tesster is a newly designed tool that can easily test the correct pin configuration of the RJ45/RJ11 modular cables, 10/100 base-T cable and Token Ring cable etc.
By comparing one transmitting end and corresponding receiving end, the 185LCT LAN cable tester also can test installed cable far away by using the remote receiving unit.
The 185LCT provides the bariety for wiring check, such as cable continuity, open status, short status and mss-wired.
SPECIFICATIONS
Display
LED
Operating Temperature
0 ~ 40 degree C
Power Source
9V (6F22, 006P) battery x 1
Dimensions
Master unit : 132 (L) x 55 (W) x 39 (D) mm
Remote receiving unit : 74 (L) x 30 (W) x 25 (D) mm
