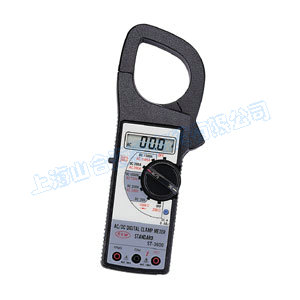

台湾标准电机SEW仪器仪表--ST-3600 AC/DC Digital Clamp Meter



ST-3600   Clamp Meters
Digital Clamp Meter
AC/DC Digital Clamp Meter
ST-3600
FEATURES

 Display 3-1/2 digit, liquid crystal display with maximum reading of 1999.
 Over range indication : "1" is displayed on highest digit.
 Low batery indication : "B" sign appears on the display.
 Response time : approx. 1 second.
 Data hold : for all ranges.
SPECIFICATIONS

ACA 200/1500, +/- (2.0%rdg+4dgt) : 40 Hz - 1K Hz
ACV 200/750, +/- (1.5%rdg+2dgt) : 40 Hz - 1K Hz
DCA 200/1500, +/- (2.0%rdg+4dgt)
DCV 20/200/1000, +/- (1.0%rdg+2dgt)
Ohm 200/1500, +/- (1.5%rdg+2dgt)
Diode Check 0 - 1500 mV, +/- (1.5%rdg+2dgt)
Conductor Size 55 mm Max.
Dimensions 245(L) x 70(W) x 41.7(D) mm
Power Source 9V (6F22) x 1
Weight Approx. 500g (battery included)
Operating Temperature -10 degree C ~ +50 degree C
Humidity 85%
Current Consumption Approx. 10 mA
Accessories Test leads (AL-26), carrying case (CAC-3600), instruction manual, battery
特 點
● 液晶顯示器31/2位,Z大讀值1999。
● 反應時間:每次約1秒。
● 過載顯示為"1"。
● 讀值鎖定功能。
● 電源不足顯示"B"。

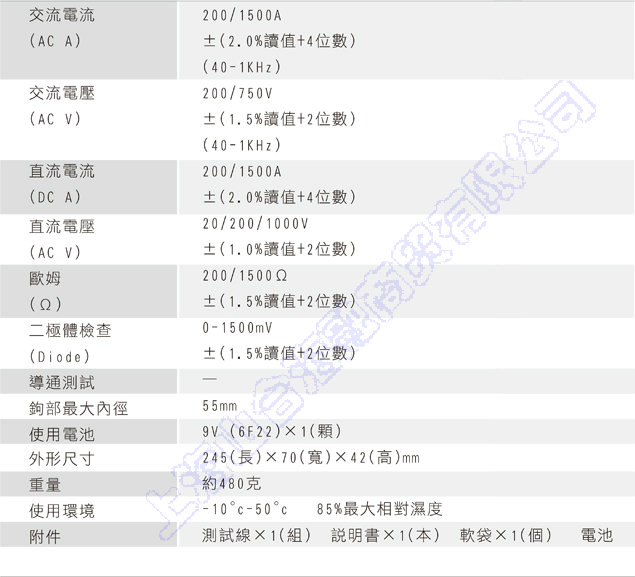

規 格
