台湾标准电机SEW仪器仪表--LVD-17 Low Voltage Detector

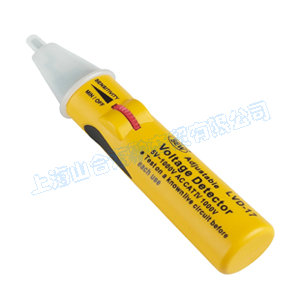

LVD-17   Low Voltage Detector
LVD-17
FEATURES

 Designed for non-contact voltage detection.
 Microprocessor controlled smart voltage detector.
 Bright LED and audile alarm sound when voltage is resent.
 Sensitivity adjustable with a thumb wheel.
 Adjustable for use on power wiring plus lighting, thermostats and other low voltage circuits.
 LED indication for battery condition.
 The LVD-17 adjustable non-contact voltage dectector is intended to check for the presence of AC voltage, signaling the user with an intermittent tone and a flashing LED. The LED flashes peridically to check the battery status.
 The LVD-17 adjustable non-contact low voltage detector is used to detect voltage in outlets, lighting fixtures, circuit breakers, wires and cables or to find a break in a wire.
SPECIFICATIONS

Voltage Detection 5V ~ 1000V AC
Frequency 50 ~ 500 Hz
Measurement Category CAT IV 1000V
Indication LED ant Tone
Operating Conditions Temperature: 0 degree C to 40 degree C
Humidity: Less than 80% R.H.
Altitude: 2000m (6500 feet) maximum
Usage For indoor use only.
Pollution Degree 2
Dimensions 142(L) x 28(W) x 27(D) mm
Weight Approx. 39g (batteries included)
Power Supply 1.5V AAA battery x 1
特 點
● 採用微處理器控制系統設計。
● 採用非接觸式(即感應式)設計,保障使用者人身安 全。
● 當偵測到交流電壓時,以LED的閃爍和聲音,來表 示交流電壓存在。
● 偵測感度可由實際需要來調整。
● 可以判別火線(Line)和接地線(Neutral)。
● :
CATⅢ 600V

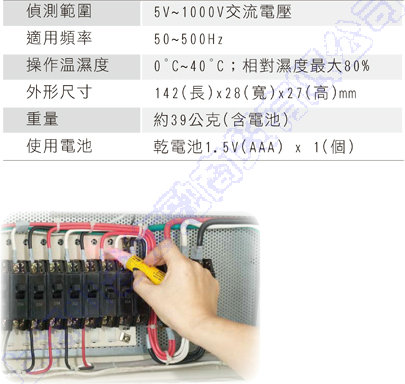

規 格
