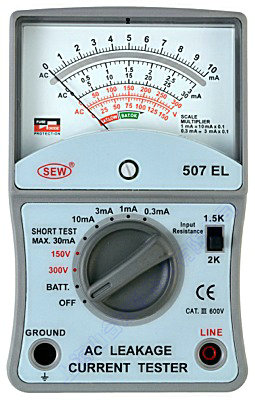

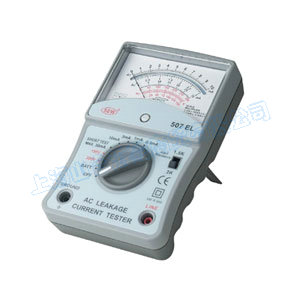

507 EL   AC Leakage Meter
507 EL
FEATURES

 High quallity movement.
 Small and lightweight, easy to use and storage.
 Mirror scale : makes reading pointer easy.
 With stand : makes reading and measuring easy.
 200uA full scale value.
 Fuse protected.
 Low battery indication.
 Meets : CAT, III 600V
 506 EL and 507 EL are special purpose AC milliammeter designed to measure hazardous leakage current from electrical appliances and other power line operated equipment.
 It's used for
 moter operated appliances : Washing machine, electrical pump, lawn mower, refrigerator, electric drill, electric fan, vending machine.
 Electrothermal appliances : Toaster, electric stove, electric curling iron, hair dryer.
 Electronic appliances : Microwave ranges, TV receiver, welding machine.
 Light source appliances : Projector, duplicator and photographic enlarger.
 Other Appliances : Portable generator, burglar alarm, medical and dental equipment.
SPECIFICATIONS

AC Leakage Currnet
Measuring Range 0.3mA - 1mA - 3mA - 10mA - 30mA
Accuracy +/- 2% F.S.
Input Resistance 1.5 K Ohm
AC Voltage
Measuring Range 0-300 / 0-600V
Accuracy +/- 2% F.S.
Input Impedance 300V 1M Ohm, 600V 2M Ohm
General
Low Battery Indication Battery check indicate good battery from 7VDC to 9VDC during a load test of 2mA
Dimensions 160(L) x 100(W) x 45(D) mm
Weight (Battery Included) 360 g
Power Source 9V(006P) x 1 battery
Accessories Test leads, Battery, Instruction Manual
特 點
● 使用高品質的表頭。
● 體積小、重量輕、易於掌握使用。
● 彩色刻度板,方便識讀。
● 腳架設計,方便使用。
● 保險絲保護設計。
● 量測電源大小設計。
● 符合安規條款:
CAT.Ⅲ 600V

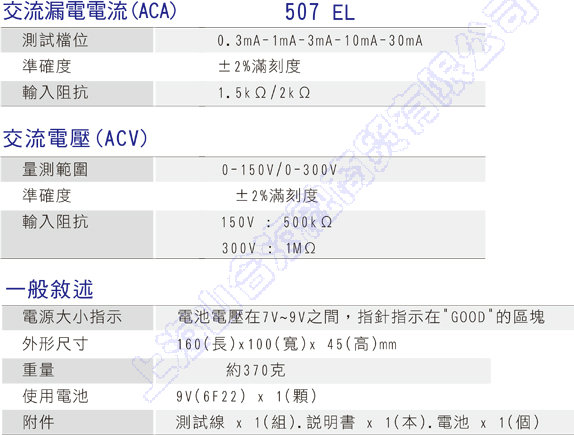

規 格 (23°C±5°C <80%R.H.)
