UCT-8 Underground Cable Fault Tester

Underground Cable Fault Tester

Raise the Standard - The All New Dimension of Underground Cable Fault Testing

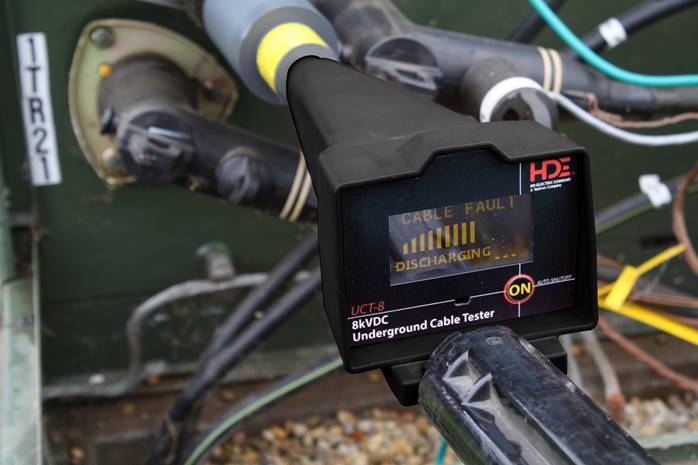

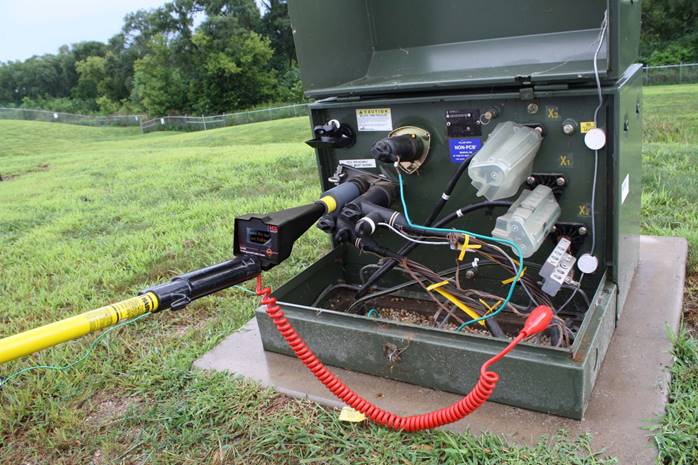

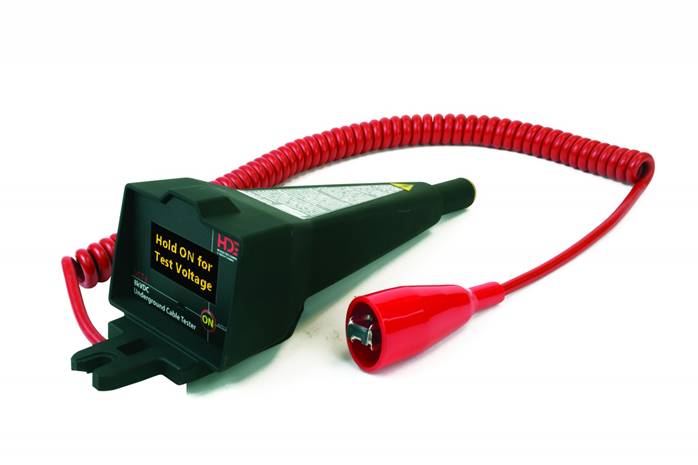

The Underground Cable Fault Tester, model UCT-8, is a lightweight, one-piece operation for underground DC leakage current testing. This tool is used to test the de-energized primary shielded voltage cable for a fault. Test results are clearly displayed as an analog bar graph along with an indication of a good or faulted cable. A self-contained 8kV high voltage source powers the tester using a 9V lithium battery, making the UCT-8 a compact single hotstick operation tool for testing cable.

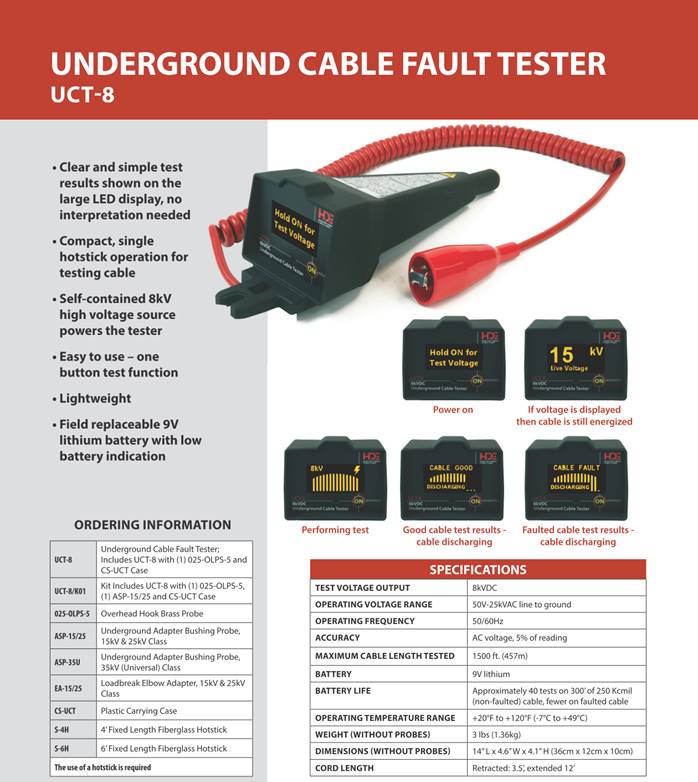

Underground Cable Fault Tester Features

·         Clear and simple test results shown on the large LED display, no interpretation needed

·         Compact, single hotstick operation for testing cable

·         Self-contained 8kV high voltage source powers the tester

·         Easy to use – one button test function

·         Lightweight

·         Field replaceable 9V lithium battery with low battery indication

HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice.
