Wireless Phasing - TAG-5000

Wireless Phasing

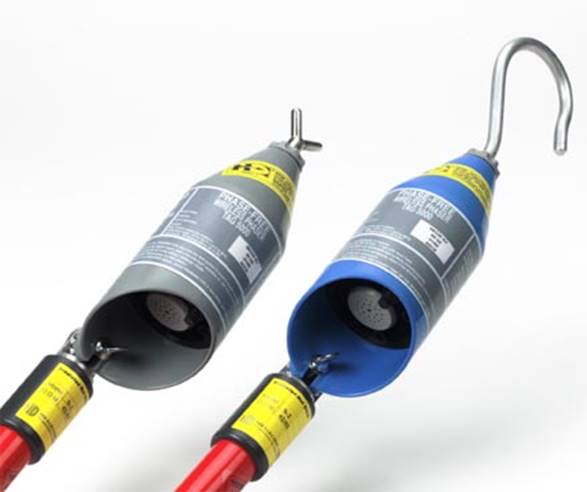

The TAG®-5000 Phase-Free® Wireless Phaser provides a unique method of phasing across a single-phase or three-phase system to make certain that correct polarity has been established prior to "closing-in" a switch. The TAG-5000 consists of two units, a transmitter and receiver, which communicate via a radio frequency signal, thus eliminating the need for a connecting cord found on traditional phasing sets.  Since the units communicate via radio signals, the range of operation is extended to more than 33 feet through the air and over 1,000 feet along overhead conductors and can operate through walls or partitions.

The TAG-5000 can be used for all overhead and underground phasing applications with appropriate underground probes and is ideal for use at higher voltages – up to 230kv – where safety and ease-of-use are prime considerations.

In operation, the transmitter is placed in contact with an energized conductor. The transmitter first acts as a voltage detector by emitting audible and visual indications. After the voltage detection sequence, the transmitter then begins to transmit a signal to the receiver. The receiver is then placed in contact with another energized conductor. The receiver processes the signal and indicates if the conductors are "in" or "out-of-phase" by emitting both audible and visual alarms. The TAG-5000 design offers several advantages and increased safety over conventional phasing equipment such an extended range of operation - more than 33 feet through the air and up to 3,000 feet along overhead conductors.  The TAG-5000 has a lightweight design, can operate on voltages up to 230 kV and can easily be operated by one person.

Wireless Phasing Features

·         Range of operation is more than 33' through the air - over 1,000' along overhead conductors

·         No connecting cord between transmitter and receiver

·         Built-in universal splines for hotstick attachment

·         Rugged and lightweight design

·         Both transmitter and receiver powered by 9V lithium or alkaline battery

·         Audible and visual indications

·         All-Check™ self-test feature for verifying proper operation prior to use

·         Phase through walls and metal enclosures

·         Phase conductors on system voltages up to 230kV (phase-to-phase)

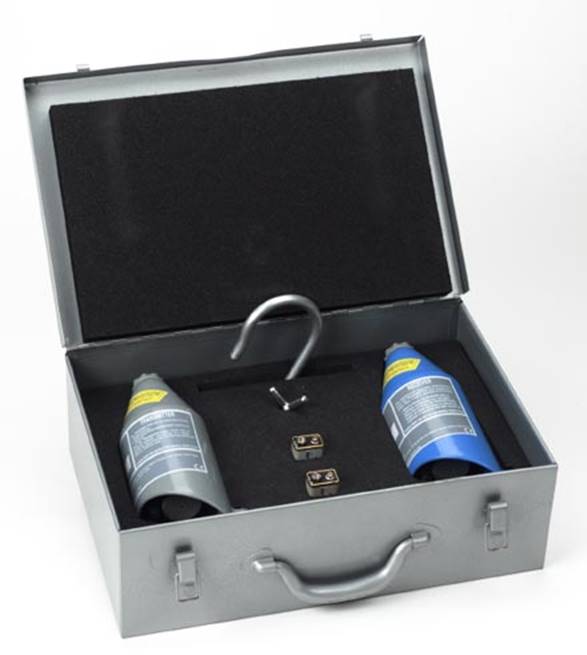

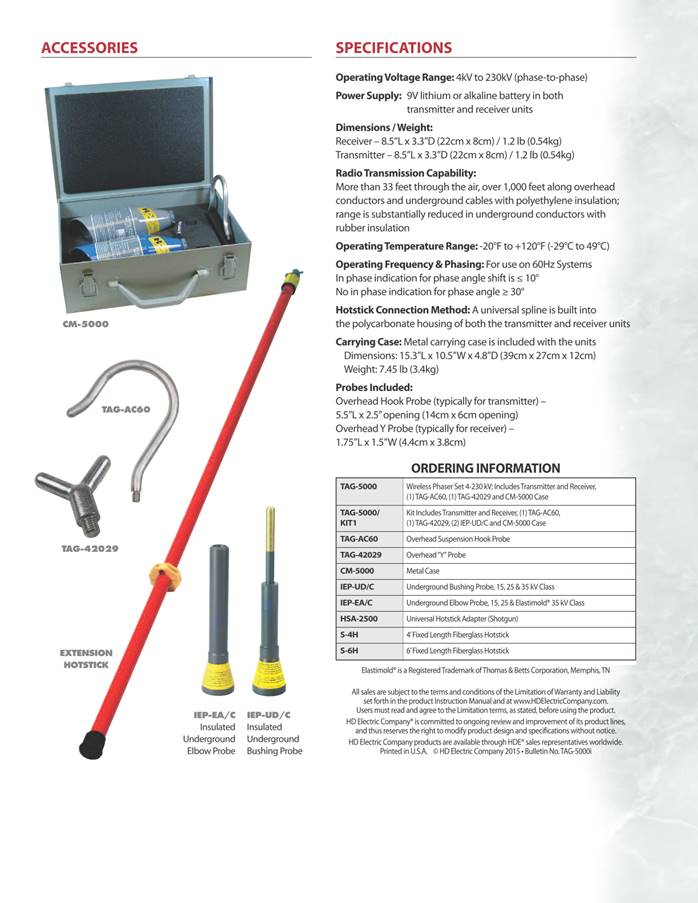

·         Includes overhead probes and foam filled carrying case

·         Can be used on 50Hz and 60Hz systems

HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice.

以下中文资料介绍仅供参考,产品资料以英文为准

TAG-5000数字高压无线核相仪概述:

主要优点在于去掉了连接开路点两端的引线,使用起来比电压表或核相器要简单。由于本仪器通过无线电信号来通讯,使用范围可以扩展到近10米,并且可以穿过围墙和隔板使用。同时,这种轻型的装置(发射器和接收器每个的重量是1磅)提高了使用的舒适度,可以一个人轻松和安全地操作两个仪器。TAG5000型的基本应用是在困难的使用条件下,即现有的电压表或核相器不适合使用的情况。在较高的电压情况下,安全性和简易的使用是首要因素,TAG5000型是您理想的选择。而且,这种装置可以穿过围墙和金属屏蔽来使用,这在使用常规仪器时往往会面临问题。TAG5000型包括两个部分。一个是电压探测器和发射器的联合装置,首先判断线路是否带电,然后发出有关导体相位的信号。另一个是接收装置,获得发射器发出的信号,然后在测试时用信号通知用户导体达到了同相。在使用中,首先对所有线路使用TAG5000的发射器,装置同线路进行接触,通过发出蜂鸣声和闪烁光确定它们带电。然后把发射器置于开路点的一端,接收装置依次置于开路点另一端的各个导体上,直至找到与发射器所在的导体同相位的线路。

TAG-5000数字高压无线核相仪操作方法:
1、先将 X和Y采集器分别挂到同一高压线路上,主机显示屏应显示X、Y同相。
2、在高压线核相时应分别将X和Y采集器按以下方法排列进行核相:AA′同相000°左右,AB′不同相 120°左右,BB′ 同相000°左右, BC′不同相120°左右,CC′同相000°左右。
3、如果要得到JQ数值,应将其中一采集器放到高压线一采集点上不动,再将另一采集器围绕高压线另一采集点前后左右移动,以找出ZJQ的相位角度。
4、在核相时,如 AA′、AB′、BB′. BC′、CC′的测试数据均为显示不同相,这是由于所测的两组供电线路接线组别不同,可能会出现30或60°的相位差。下面介绍出现这种情况时的测量标准(以30°相位差为例):测试方法与①和②相同,所测结果以应为:AA ' 不同相30°、AB'不同相120°,BB'不同相30°, BC'不同相120°、CC ' 不同相30°(注:120°和240°只表示正相序或逆相序)
5、在测量≥10KV时,X和Y可直接同时放在导线或绝缘皮上进行核相
6、在≥66KV核相时,X和Y采集器可以采取接触或非接触方法核相。(如测量110KV和220KV时,将X和Y采集头放在高压电线下方300mm至1000mm处。测量500KV时,将X和Y采集头放在高压电线下方1000mm-2000mm处,测量左右允许偏差300mm)
7、测相序。假设某条线为A相,将X放在A相上,Y放在另一相上,如显示120°则说明是顺相序,该相应为“B”,如显示240°则是逆相序,该相应为“C”。
8、验电。将其中一个采集器挂在高压电线上,如主机屏幕显示相应采集器的符号,则说明该高压线有电。相反,如主机屏幕不显示该采集器的符号,则说明该高压线无电。

TAG-5000数字高压无线核相仪参数:

1、电压等级 400v~220Kv (标配35KV)
2、无线传送距离 20m
3、相位差测量精度 ±3度
4、频率精度 ±1Hz
5、工作频率 50Hz~60Hz
6、电源 9V电池
7、环境温度 -20℃~+50℃
8、环境湿度 全天候
9、相位角范围 相位角偏移小于±30°为同相
10、相位角偏移大于±30°为异相
11、校验 自动校验,也可在带电导线上校验
12、重量 发射器0.52Kg、接收器0.2 Kg
13、尺寸 76×200mm
14、包装 铝合金箱

TAG-5000数字高压无线核相仪特点:

1、TAG5000数字高压无线核相器屏幕显示内容:无线高压核相仪,不同相、同相、频率、X、Y、 。
2、电源:主机采用可充电电源,X 和 Y 采集器 5 节 AG13 电池。
3、自动关机:开机后8分钟左右主机自动关机
4、接触被测强电场时,仪器会自动报警。

.无线电信号发送、接收和比较原理
·核相无导线,更安全、方便
·高频信号(433.9MHz)可以穿过围墙、隔板和门等,适用性更广
·当场带电校验,更具KK性
·全天侯使用
·无线电波在空气中传送距离可达10米
·核相:声光信号
·聚碳酸酯外壳,非常坚固
·核相时一人操作、也可两人操作
·重量:接收器(黄色):0.520kg;发射器(红色):0.560kg
·TAG5000数字高压无线核相器包括:发射器、接收器、探头、仪器箱和说明书。
用户订购时须说明电压等级:10kV、35kV、110kV、220kV(相电压)
