现在位置:美国HDE产品首页→DVI-100高压电压表 Digital Voltage Indicator with Overhead Hook Probe

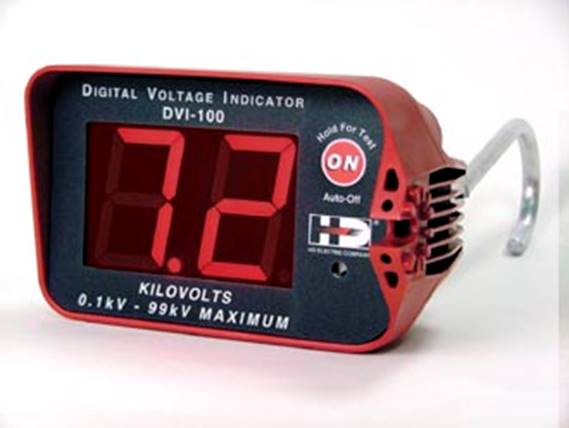

DVI-100 Digital Voltage Indicator with Overhead Hook Probe

Digital Voltage Indicators

The DVI-100 Series Digital Voltage Indicators are single point instruments designed to read the voltage on a conductor up to 99kV line-to-ground. The large LED readout is easy to read on the end of a long hotstick and can be used on overhead lines or in underground applications with an underground bushing probe.

There are two DVI-100 models. The DVI-100 indicates voltage from 0.1kV to 99kV on overhead and underground systems - displaying the voltage on a large 2-digit LED display. The DVI-100T with Test Point Mode has the added feature of indicating voltage on elbow test points.

The DVI displays the voltage and emits an audible alarm when voltage above 100VAC is detected with no range selector switches or settings to be made - just contact the conductor and read the display. This allows the user to determine if the voltage being read is nominal or a lower induced voltage.

For higher voltages, the DVI-500 Series Digital Voltage Indicators indicate voltage up to 500kV on a three-digit display.  Click here to visit the DVI-500 Series webpage.

Digital Voltage Indicator Features

·         For use on system voltages up to 161kV

·         Large LED display indicates the line-to-ground voltage level

·         Display is easy to read in bright or dark conditions

·         Voltage readout allows user to distinguish between nominal and induced voltage levels

·         Audible indication when voltage is detected

·         Built-in universal spline for standard hotstick attachment

·         Auto shut-off with low battery function

·         DVI Voltage Detector Tester (PT-DVI, optional) available as a power source to test the DVI before and after use

HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice.

DVI系列大屏数显电压表
DVI系列大屏数显电压表为单点测量设计,用户无需选
择电压量程,直接通过挂钩或探头将DVI解除导体即可
读取电压,大屏幕数显使用户能够在远距离观察到电压
读值。此系列电压表可用于测量架空线路电压,也可加
装探头后用于测量入地电缆地面设备电压。
DVI系列产品包含以下型号:
DVI-100 Z高量程100KV
DVI-100T Z高量程100KV带测试点模式
DVI-500 Z高量程500KV
DVI-500T Z高量程500KV带测试点模式
产品特点:
Z高可用于测量500KV电压系统
无需量程选择或设置,直接使用
大屏幕数显BZ远距离可以清晰观察读值
当被测电压大于100V AC时发出警示声
自动关机以及低电量提示
可配合标准绝缘杆使用

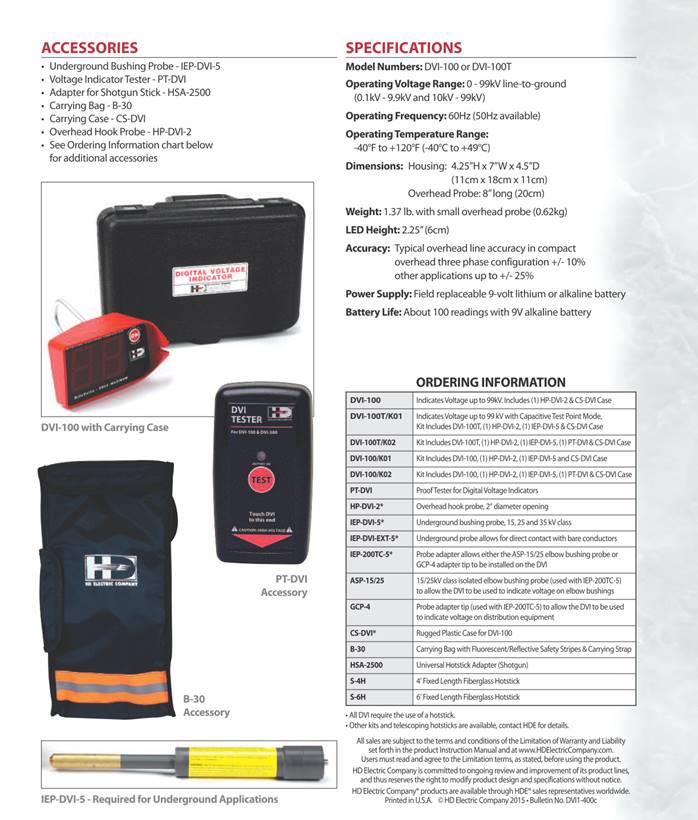

DVI 系列产品参数表



DVI-500(T)

DVI-100(T)

电压测量范围

0-500KV自动量程

0-100KV自动量程

电压测量频率

50/60Hz

电压测量精度

±10%(常规三相电路),其他情况Z高±25%

电池寿命

一节9V碱性电池大约100次读数

操作温度范围

-40℃搭配+49℃

重量

0.62kg

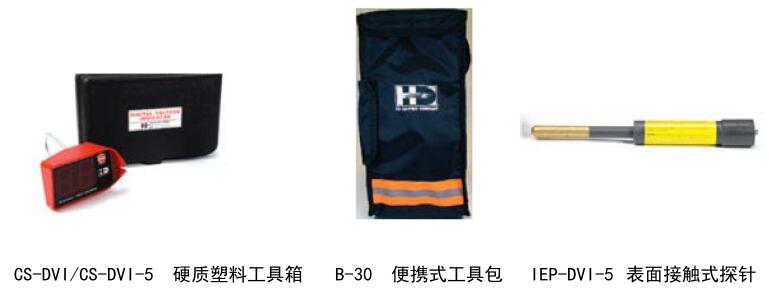

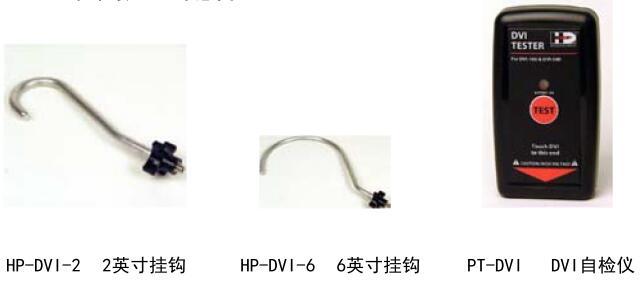

DVI系列产品配件

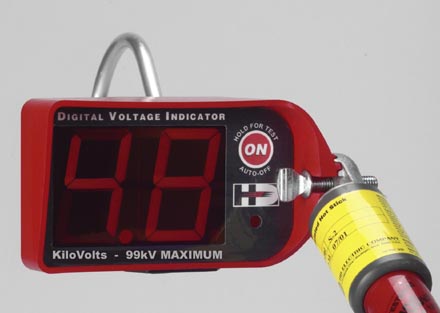

DVI-100 Digital Voltage Indicator Installed on a Hotstick

Digital Voltage Indicators

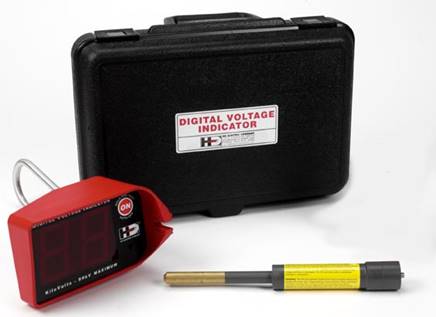

Digital Voltage Indicator Kit DVI-100/K01

Digital Voltage Indicators

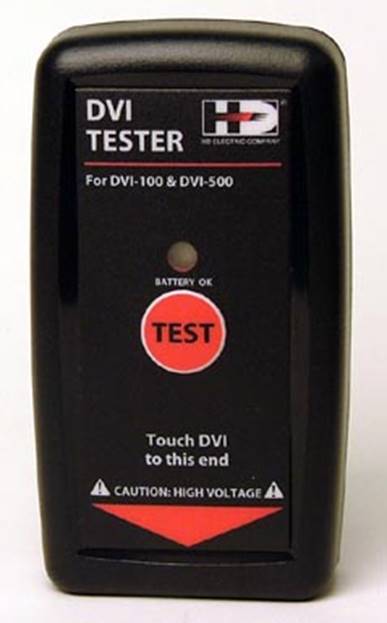

PT-DVI Proof Tester for DVI (accessory)
