Dual Display Wireless Voltage Indicating Phaser - DDVIP-40

DoubleVision Dual Display Wireless Voltage Indicating Phaser

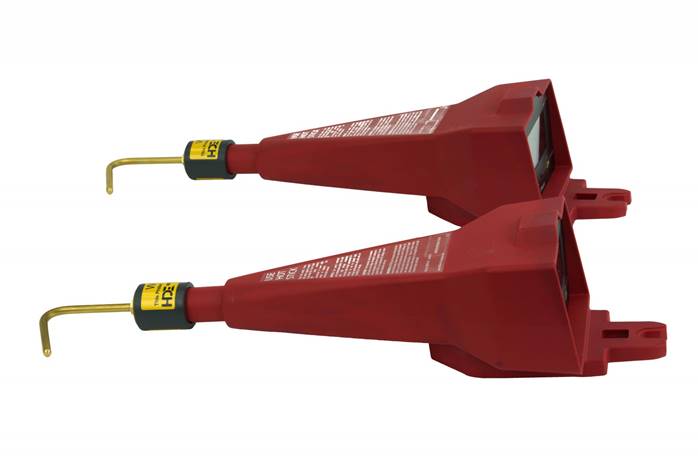

The Dual Display® Voltage Indicating Phaser, model DDVIP, is a completely wireless dual display voltage indicator and phasing tool for voltages up to 43kV.  It includes a pair of lightweight, single stick line-to-ground voltage indicators that communicate with each other wirelessly.  The DDVIP can also be used independently as Digital Voltage Indicators. Its multiple functions include:

·         Expanded phasing capabilities

·         Two large, digital LED displays are easily read from a distance or in bright sunlight

·         Clear indication of in-phase or out-of-phase

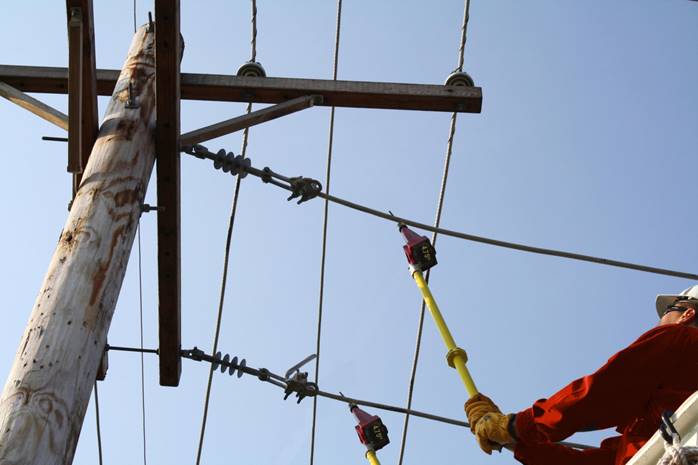

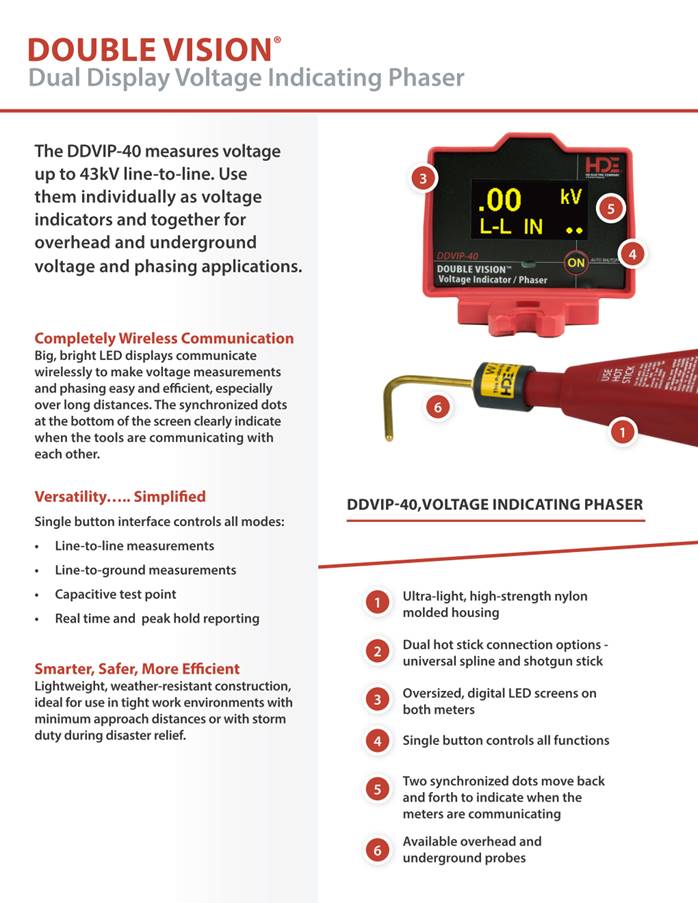

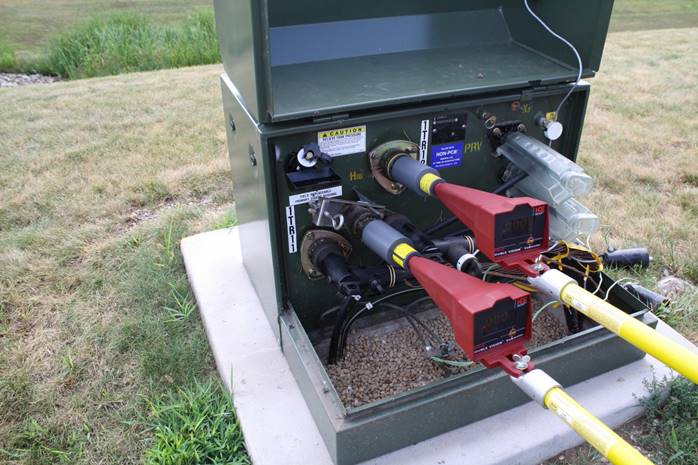

The DDVIP-40 measures voltage up to 43kV line-to-line. Use them individually as voltage indicators and together for overhead and underground voltage and phasing applications.

Completely Wireless Communication - Big, bright LED displays communicate wirelessly to make voltage measurements and phasing easy and efficient, especially over long distances. The synchronized dots at the bottom of the screens clearly indicate when the tools are communicating with each other.

For longer distance phasing up to 100 feet, the DDVIP is an ideal solution.

Features and Benefits

·         Single button interface controls all functions:

·         Line-to-line measurements

·         Line-to-ground measurements

·         Capacitive test point

·         Real time and peak hold reporting

·         Ultra-light, high-strength nylon molded housing

·         Dual hot stick connection options - universal spline and shotgun stick

·         Oversized, digital LED screens on both meters

·         Two synchronized dots move back and forth to indicate when the meters are communicating

·         Available overhead and underground probes

·         Dual battery monitor with auto shut off

·         Powered by two 9V lithium or alkaline batteries in an easy to change battery case - no tools required

HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice.

DVM系列多功能核相仪
DVM系列多功能核相仪具有体积小巧,便于携带,测量
精度高,支持有线/无线核相等特点。设有电容测试点
模式,具有峰值保持功能。可测电压为5V-40KV。双探
头设计使产品既可用于架空线路测量,也可用于入地电
缆地面设备测量,同时BZ电压测量以及核相工作的稳
定和准确。
DVM系列包含以下产品型号:
DVM-80UVM便携型多功能核相仪
DDVM-40大屏幕多功能核相仪
DDPM-40大屏幕多功能无线核相仪
产品特点:
三位半数字显示
背光显示屏,强光或弱光环境下均可轻松读数
可测电压为40KV
电压测量精度为1%
适用于架空线路和入地电缆地面设备
可配合标准绝缘杆使用

DVM 系列多功能核相仪参数表


DVM-80UVM

DDVM-40

DDPM-40

无线测量功能

相位角测量

适用电压范围

5V–40KV

电压测量频率

25–1000Hz

电压测量精度

1%±3 字读数

数据保持功能

自动关机功能

工作环境温度

-29°C-49°C

电池类型

9V 碱性电池 1 节

9V 碱性电池 2 节

9V 碱性电池 2 节

电池寿命

约 15 小时

约 8 小时

约 8 小时

数显尺寸

0.4”

0.7”



连接/接地线长度

延展Z长约 3 米

延展Z长约 3 米

延展Z长约 3 米

仪器重量

1.02kg

1.82kg

1.02kg(单个探头)

DVM 系列多功能核相仪选型指南


套装型号

套装详细配置

DVM-80UVM

DVM-80UVM(1)/025-OLPS-5(2)/CS-DVM(1)

DVM-80UVK

DVM-80UVM(1)/025-OLPS-5(2)/R-80(2)/ASP-15/25(2)/CFT-35(1)/ PT-5000B(1)/HAS-2500(2)/B-12(1)

DVM-80UVM

(1)/025-OLPS-5(2)/R-80(2)/ASP-15/25(2)/CFT-35(1)/

DDVM-40

DDVM-40(1)/025-OLPS-5(2)/CS-DDVM(1)

DDVM-40/K01

DDVM-40(1)/025-OLPS-5(2)/PT-5000B(1)/CS-DDVM(1)

DDVM-40/K02

DDVM-40(1)/025-OLPS-5(2)/PT-5000B(1)/ASP-15/25(2)/CS-DDVM(1)

DDVM-40/K03

DDVM-40(1)/025-OLPS-5(2)/PT-5000B(1)/ASP-15/25(2)/CFT-35(1)/CS-DDVM(1)

DDPM-40

DDPM-40(1)/025-OLPS-5(2)/CS-DDVM(1)

DDPM-40/K01

DDPM-40(1)/025-OLPS-5(2)/PT-5000B(1)/CS-DDVM(1)

DDPM-40/K02

DDPM-40(1)/025-OLPS-5(2)/PT-5000B(1)/ASP-15/25(2)/CS-DDVM(1)
