HiSat Surge Arrester Tester

Leakage Arrester Testers - HiSat Series

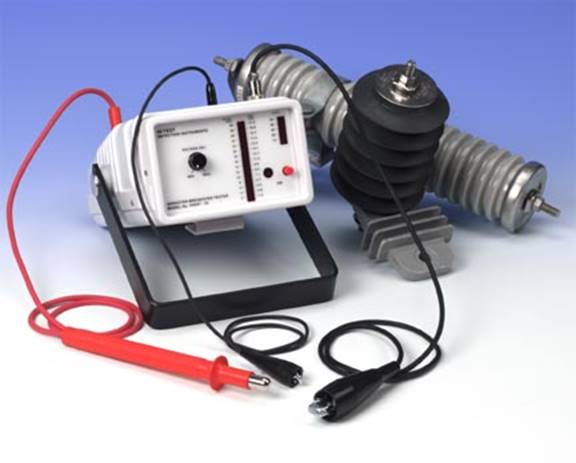

The Hi-Test® HiSat MOV Surge Arrester and Leakage Testers allow for the non-destructive testing of de-energized surge arresters for non-visible internal breakdown. These self-contained units are lightweight and portable for both shop and field use. The HiSat applies voltage across the arrester and indicates the breakover/conduction point of the arrester. It will determine if an arrester is conducting at lower voltages than specified or not conducting at all. Because of new arrester technology, the testers will not properly test gap or hybrid MOV/GAP type arresters such as Hubbell® Optima or Cooper VariGAP®.

Arrester / Leakage Tester Features

·         Tests up to 25kV class MOV arresters (up to 18kV rated)

·         Self-contained with rechargeable battery

·         Easy to read LED's

·         Auto shutoff

·         Pivoting handle and belt clip

·         Lightweight and completely portable

·         Includes 120VAC charging adapter

HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice.

HiSat避雷器测试仪
用于检测Z高25KV等级的避雷器,测试仪输出直流电压Z高为30KV。
