现在位置：美国HDE产品首页→HALO数字式电压电流表High Voltage Digital Ammeter
Halo I with Hook Style Sensing Head

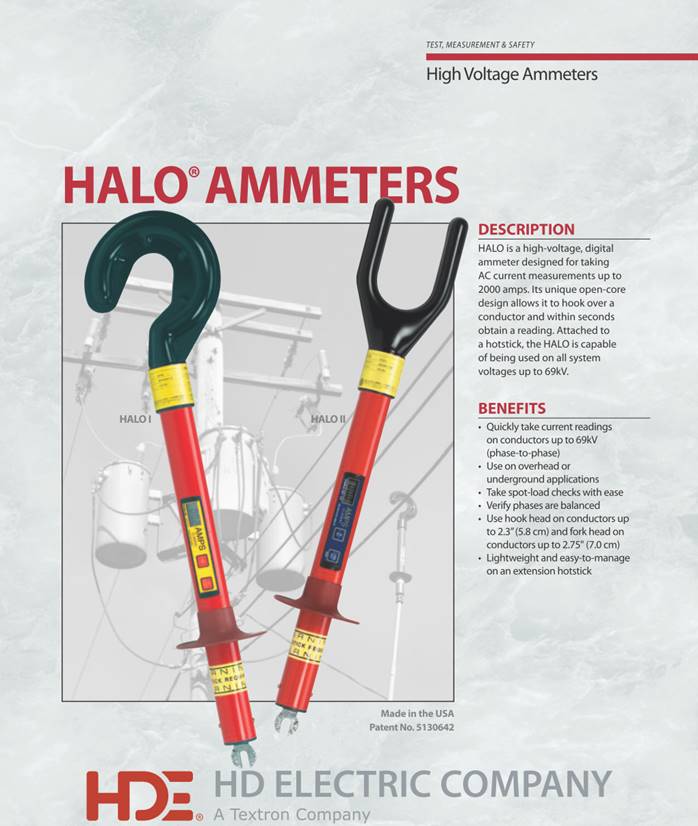

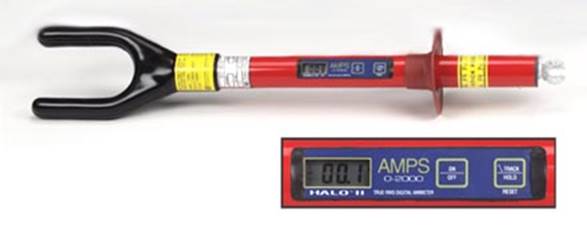

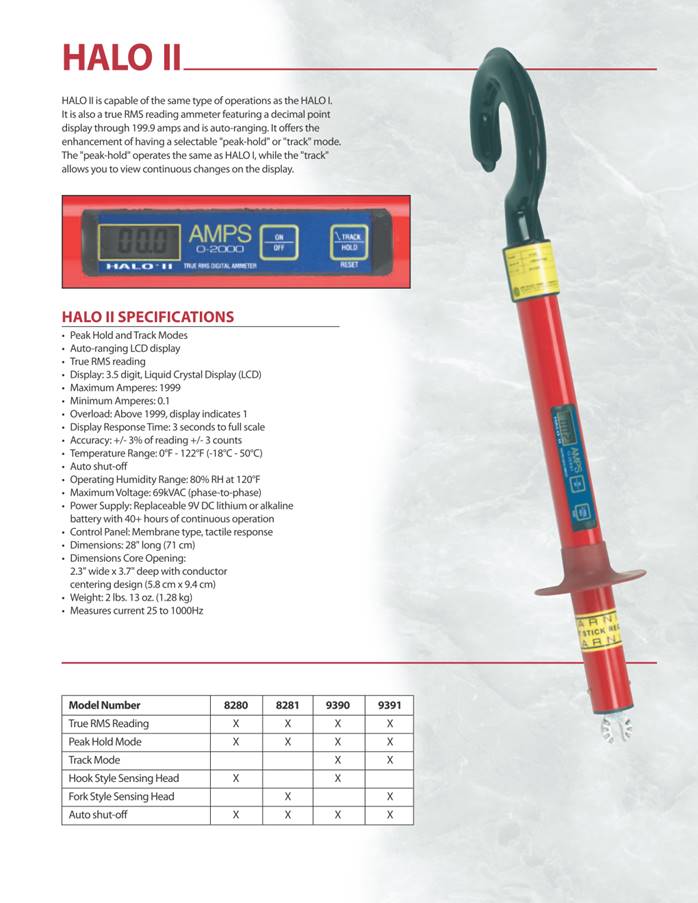

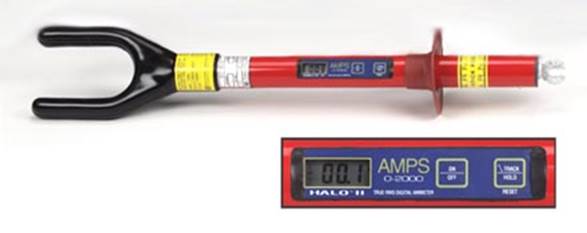

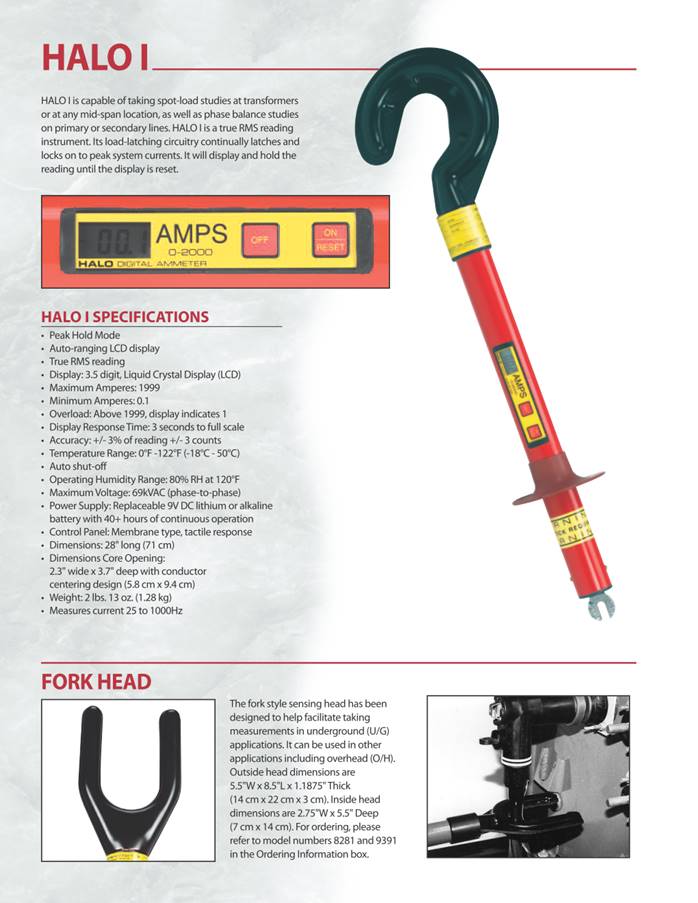

High Voltage Digital Ammeter The HALO® is a high voltage digital ammeter for use on power distribution systems designed to take True RMS AC current measurements. Its open-core design allows the user to quickly hook it over a conductor from the end of a hotstick and obtain a current reading in amperes. The HALO can be used to take spot load measurements on a single phase, as well as take readings on all three phases to determine load balance. There are two models, the HALO I and the HALO II. The HALO I has a peak-hold mode so the reading is stored on the display until reset. The HALO II includes the peak-hold mode and also a tracking mode that allows the user to view continuous changes on the display. The unit can be used on any voltage up to 69kV system voltages. It is available with either a hook-style or fork-style sensing head. The HALO can be used over insulated cable. However, it cannot be used over shielded cable, such as the concentric neutral. High Voltage Ammeter Features · For use on voltages up to 69kV class (40kV line-to-ground) · True RMS reading instrument · 0-2000 amp auto-ranging LCD display · Track and peak-hold modes available · Hook or fork style sensing heads · Universal spline for standard hotstick attachment · Powered by a field replaceable 9V lithium or alkaline battery · Auto shut-off HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice. HALO系列真有效值电流表 产品特点： HALO 系列电流表功能列表
|
|
