RT-200 Rope Tester

Rope Tester

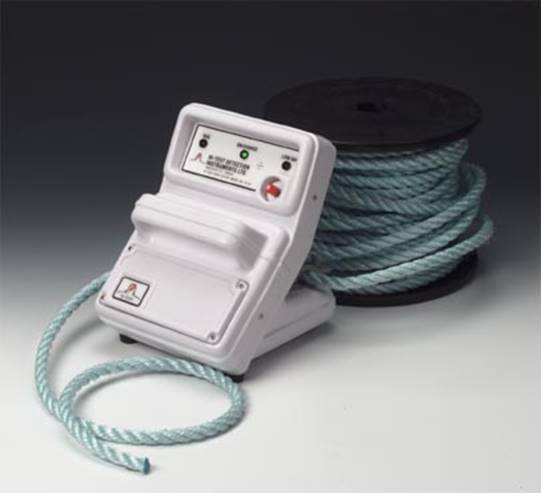

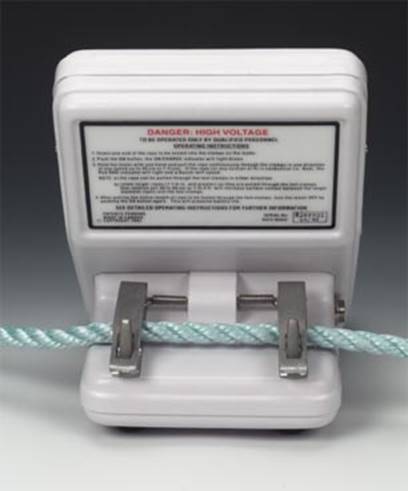

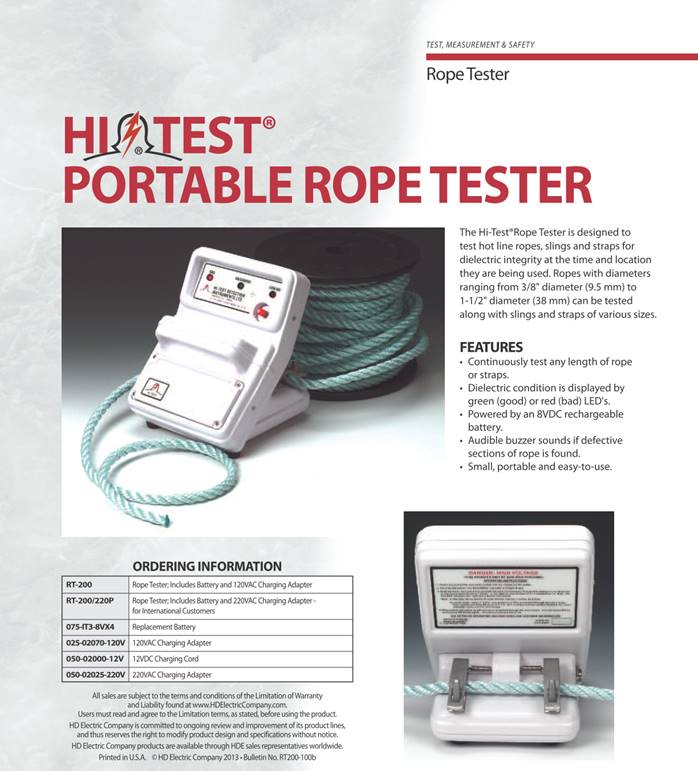

The Hi-Test^®Rope Tester is designed to test hot line ropes, slings and straps for dielectric integrity at the time and location they are being used. Ropes with diameters ranging from 3/8" diameter (9.5 mm) to 1-1/2" diameter (38 mm) can be tested along with slings and straps of various sizes.

Rope Tester Features

·         Continuously test any length of rope or straps

·         Dielectric condition is displayed by green (good) or red (bad) LED's

·         Powered by a lithium-ion rechargeable battery

·         Audible buzzer sounds if defective sections of rope is found

·         Small, portable and easy-to-use

HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice.

RT-200绝缘绳/杆测试仪
RT-200绝缘绳/杆测试仪可以快速检测绝缘绳，绝缘杆，绝缘吊索以及绝缘皮带的绝缘完整性。可检测Z大直径为38mm的绝缘绳以及各种尺寸的吊索和皮带。通过测试仪背部两个自带直流电源的测试夹，施加直流电压到被检测物上，从测试仪正面通过绿色或红色指示灯提示该绳索是否达到绝缘标准。操作时，作业人员单手握住测试仪正面的把手，然后另一手拖拽绳索同时观察测试仪面板的指示灯，可以在库房或作业现场快速地检验任意长度的绳索。该测试仪内置锂电池，电池寿命长久，同时支持市电和车载电源充电。

产品特点：
检测结果直观，声光报警帮助作业人员快速判断绝缘性能
操作方式简单，相比其他检测手段都要节省时间
内置电源电流限定，避免人身触摸伤害
可不间歇地测量任何长度的绳索
可通过市电或车载电源充电
快速充电，充电15分钟可使用一整天
