Universal Digital Voltmeter and Kit - DVM-80UVM

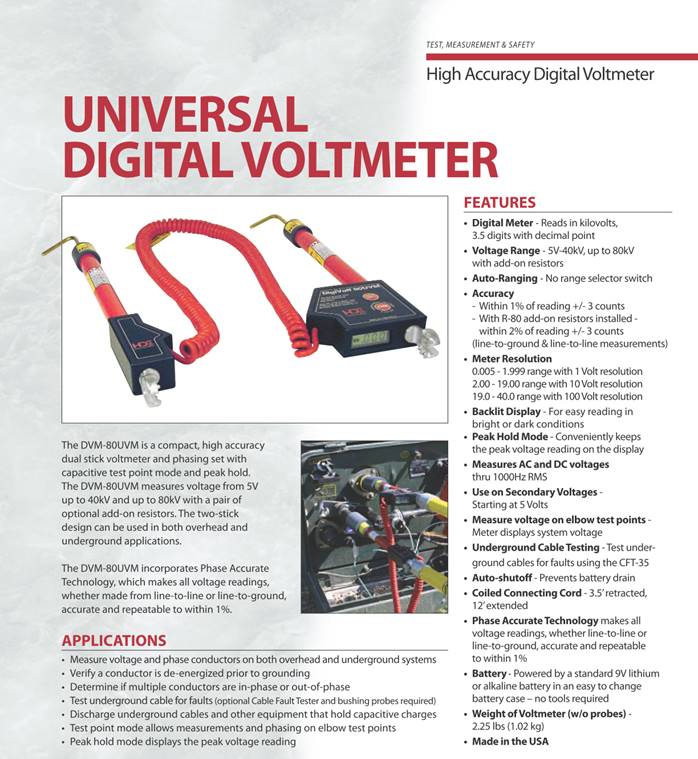

Universal Digital Voltmeter and Kit

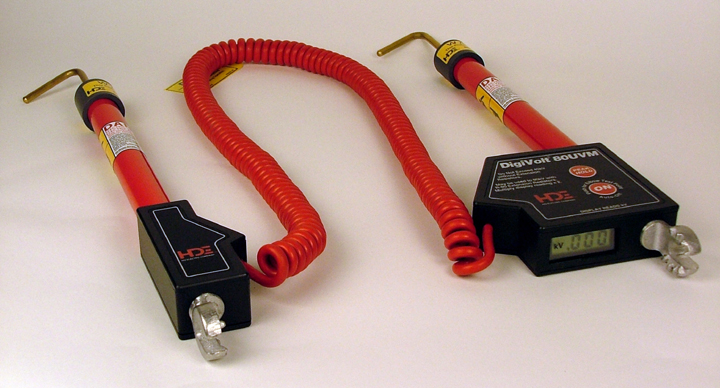

The DigiVolt^® series of digital voltmeters and phasing sets is designed to take voltage measurements and perform phasing applications on system voltages up to 80kV.  The DVM-80UVM is a compact, high accuracy dual stick voltmeter and phasing set with capacitive test point mode and peak hold. The DVM-80UVM measures voltage from 5V up to 40kV and up to 80kV with a pair of optional add-on resistors. The two-stick design can be used in both overhead and underground applications. The DVM-80 units incorporate Phase Accurate Technology, which makes all voltage readings, whether made from line-to-line or line-to-ground, accurate and repeatable to within 1%.

The DVM-80UVM is available in a Universal Voltmeter Kit.  We have packaged it with an assembly of accessories, offering it as a complete, ready-to-use Universal Voltmeter Kit.  Priced competitively as a complete kit, this may be the best value in the market today.

Features and Benefits

·         Peak Hold mode

·         Triple auto ranging 3.5 digit display - reads in kilovolts from 5 Volts to 80kV

·         Highly accurate, within 1% of the reading

·         Backlit display for easy reading in bright or dark conditions

·         Measures AC and DC voltages

·         Use on secondary voltages, starting at 5 Volts

·         Measure voltage on elbow test points, meter will display the system voltage

·         Test underground cables for faults

·         Auto shut-off

·         Powered by a 9V lithium or alkaline battery in an easy to change battery case - no tools required

·         Voltmeter weights 2.25 lbs.

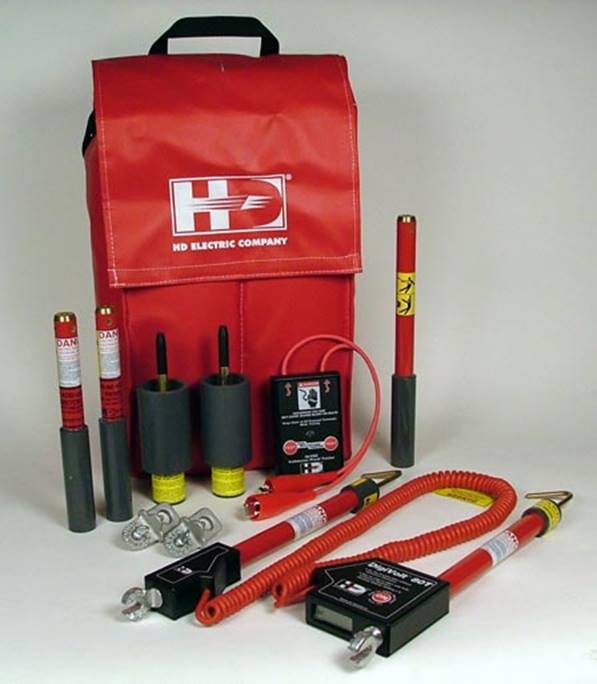

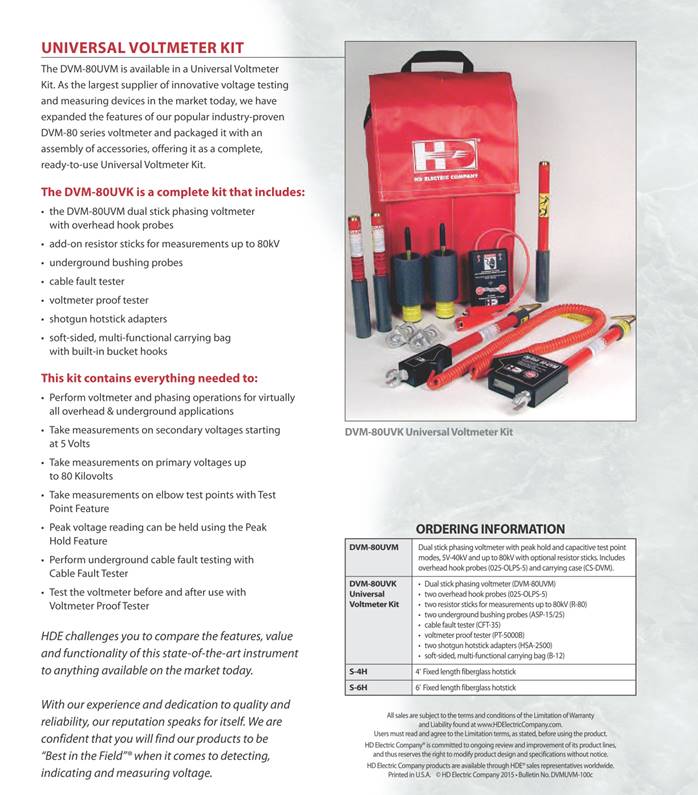

The DVM-80UVK is a complete kit that includes the DVM-80UVM dual stick phasing voltmeter with overhead hook probes, add-on resistor sticks for measurements up to 80kV, underground bushing probes, cable fault tester, voltmeter proof tester, shotgun hotstick adapters and a soft-sided, multi-functional carrying bag with built-in bucket hooks.

This kit contains everything needed to:

·         Perform voltmeter and phasing operations for virtually all overhead & underground applications

·         Take measurements on secondary voltages starting at 5 Volts

·         Take measurements on primary voltages up to 80 Kilovolts

·         Take measurements on elbow test points with Test Point Feature

·         Peak voltage reading can be held using the new Peak Hold Feature

·         Perform underground cable fault testing with Cable Fault Tester

·         Test the voltmeter before and after use with Voltmeter Proof Tester

HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice.

DVM系列多功能核相仪
DVM系列多功能核相仪具有体积小巧，便于携带，测量
精度高，支持有线/无线核相等特点。设有电容测试点
模式，具有峰值保持功能。可测电压为5V-40KV。双探
头设计使产品既可用于架空线路测量，也可用于入地电
缆地面设备测量，同时BZ电压测量以及核相工作的稳
定和准确。
DVM系列包含以下产品型号：
DVM-80UVM便携型多功能核相仪
DDVM-40大屏幕多功能核相仪
DDPM-40大屏幕多功能无线核相仪
产品特点：
三位半数字显示
背光显示屏，强光或弱光环境下均可轻松读数
可测电压为40KV
电压测量精度为1%
适用于架空线路和入地电缆地面设备
可配合标准绝缘杆使用

DVM 系列多功能核相仪参数表

	DVM-80UVM	DDVM-40	DDPM-40
无线测量功能	无	无	有
相位角测量	无	无	有
适用电压范围	5V–40KV
电压测量频率	25–1000Hz
电压测量精度	1%±3 字读数
数据保持功能	有
自动关机功能	有
工作环境温度	-29°C-49°C
电池类型	9V 碱性电池 1 节	9V 碱性电池 2 节	9V 碱性电池 2 节
电池寿命	约 15 小时	约 8 小时	约 8 小时
数显尺寸	0.4”	0.7”
连接/接地线长度	延展Z长约 3 米	延展Z长约 3 米	延展Z长约 3 米
仪器重量	1.02kg	1.82kg	1.02kg（单个探头）

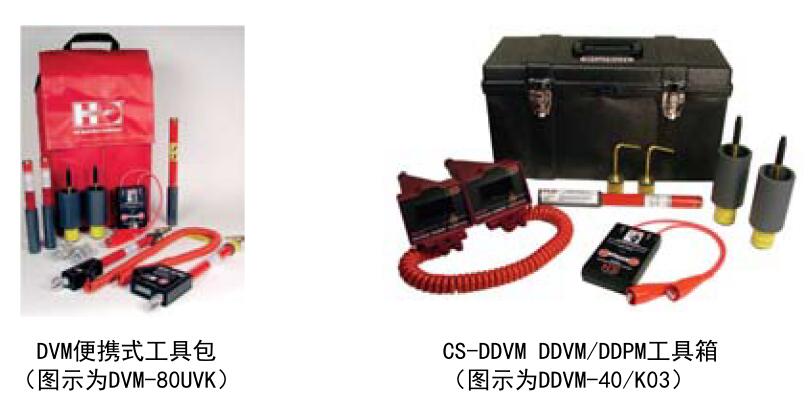

DVM 系列多功能核相仪选型指南

套装型号	套装详细配置
DVM-80UVM	DVM-80UVM(1)/025-OLPS-5(2)/CS-DVM(1)
DVM-80UVK	DVM-80UVM(1)/025-OLPS-5(2)/R-80(2)/ASP-15/25(2)/CFT-35(1)/ PT-5000B(1)/HAS-2500(2)/B-12(1)
DVM-80UVM	(1)/025-OLPS-5(2)/R-80(2)/ASP-15/25(2)/CFT-35(1)/
DDVM-40	DDVM-40(1)/025-OLPS-5(2)/CS-DDVM(1)
DDVM-40/K01	DDVM-40(1)/025-OLPS-5(2)/PT-5000B(1)/CS-DDVM(1)
DDVM-40/K02	DDVM-40(1)/025-OLPS-5(2)/PT-5000B(1)/ASP-15/25(2)/CS-DDVM(1)
DDVM-40/K03	DDVM-40(1)/025-OLPS-5(2)/PT-5000B(1)/ASP-15/25(2)/CFT-35(1)/CS-DDVM(1)
DDPM-40	DDPM-40(1)/025-OLPS-5(2)/CS-DDVM(1)
DDPM-40/K01	DDPM-40(1)/025-OLPS-5(2)/PT-5000B(1)/CS-DDVM(1)
DDPM-40/K02	DDPM-40(1)/025-OLPS-5(2)/PT-5000B(1)/ASP-15/25(2)/CS-DDVM(1)

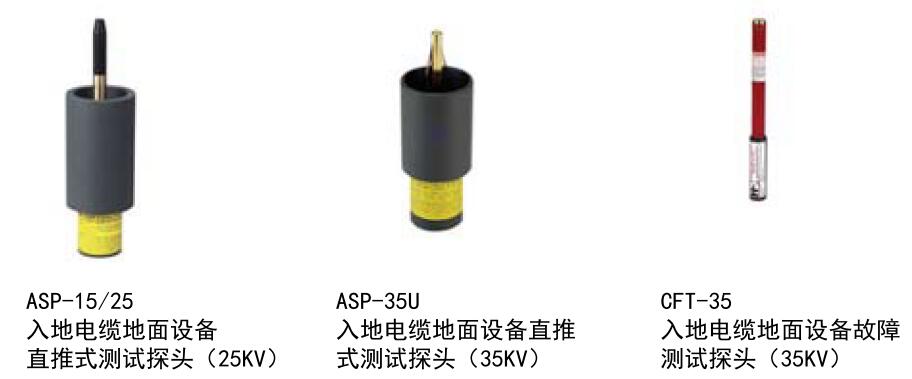

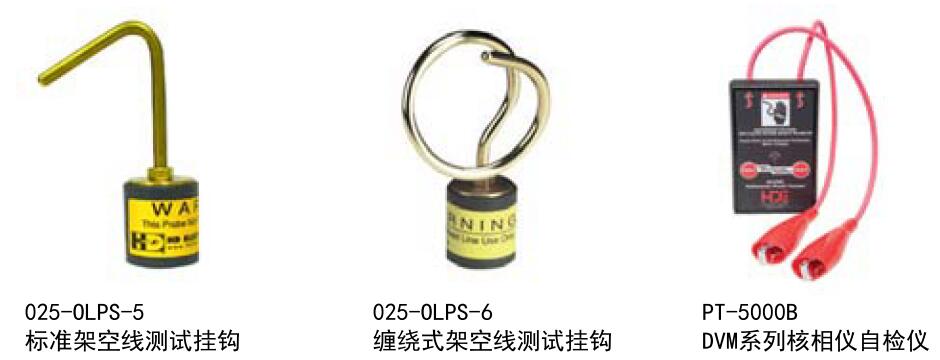

DVM系列多功能核相仪配件
