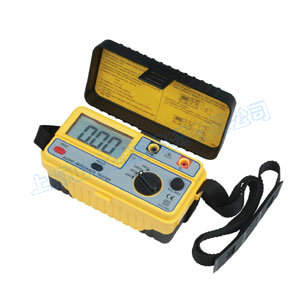

True measurement of speaker systems actual impedance at 1kHz
Three test ranges allow testing of home theater and commercial sound systems
Measures transformer impedances
Battery operation
Low battery indication
Data hold function
0 Ohm adjustment
EN 61010-1 CAT III 200V, EN 61326-1, EN 61326-2-1, EN 61326-2-2
It is recommended a drawing be first made of speaker system to verify proper installation
Take care to ensure that the system is not connected to the amplifier
Ensure the system under test is not live
Check batery, of sysmbol appears on the display, replace with new batteries
Short the tips of the leads, adjust the "0 Ohm ADJ", control to set the reading of zero
Connect test leads to speaker or speaker leads. Note : Speakers may be connected together either in series or parallel to achieve desired final impedance
Rotate the function switch to a suitable range then press the push button to test and take the reading

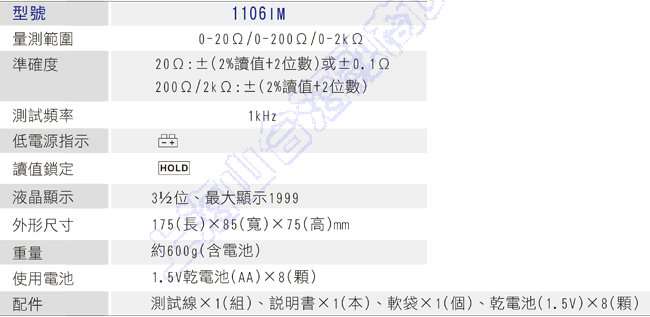

SPECIFICATIONS
Measuring Ranges
0-20 Ohm/ 0-200 Ohm/ 0-2k Ohm
Test Frequency
1k Hz
Accuracy
20 Ohm : +/- 2% rdg +/- 2 dgt or +/- 0.1 Ohm which is greater
200 Ohm/2k Ohm : +/- 2% rdg +/- 2 dgt
Low Battery Indication
Symbol appears on the display
Data Hold Indication
Symbol appears on the display
Display
LCD 3-1/2 digit (2000 counts)
Dimensions
175 (L) x 85 (W) x 75 (D) mm
Weight
Approx. 600g (battery included)
Power Source
1.5V SUM-3 (AA) x 8 or equivalent
Accessores
Test leads, carrying case, instruction manual, batteries
Large LCD display 68 x 34 mm (1.338" x 2.677")
● 寬廣型的液晶顯示器(68 x 34mm)。
