法国SFE TAG5000核相仪

TAG5000

TAG5000
WIRELESS PHASE COMPARATOR, FROM 4 KV TO 500 KV


Use:

An alternative to the voltmeter for checking the phase coincidence in a network before looping.
The wireless technology of the TAG5000 eliminates any danger due to the use of high voltage connecting cables on conventional devices and enables it to be used even for high voltages.
Possibility of measuring through obstacles such as walls, doors, etc.
No distance limit due to the cable: range of 10 to 16 m in the air and about 30 m in contact with the network.

Technical specications:

  • Can be used to check all types of three-phase networks from 4 to 500 kV
    (from 230 kV to 500 kV with special antenna extensions).

  • 433.9 MHz coded multi-channel link compliant with Telecom standards.

  • Comes with two pairs of contact electrodes: two 40 mm Vs and two 60 mm hooks.

  • It can be tted onto all types of insulating sticks using intermediate adapters.

  • The transmitter (grey box) indicates that a voltage is present by an audible and light signal, then sends the phase information to the receiver.

  • The receiver (blue box) measures the phase angle. It indicates phase coincidence by audible and light signals.

  • Self-test feature and simulation of all functions.

  • Can be used in all weathers.

  • Power supply: 9V batteries. Battery life: 6 months.
  • TAG5000



    Ref.

    Voltage range

    Frequency

    Use

    Contact electrode

    Packaging

    T5KGB004230C5

    4 - 230 kV

    50 Hz

    Outdoor

    AC60 / AC120 / D100

    Metal case

    T5KGB004230C6

    4 - 230 kV

    60 Hz

    Outdoor

    AC60 / AC120 / D100

    Metal case

    T5KGB004500H5

    4 - 500 kV

    50 Hz

    Outdoor

    AC60 / AC120 / D100

    Soft case

    T5KGB004500H6

    4 - 500 kV

    60 Hz

    Outdoor

    AC60 / AC120 / D100

    Soft case

    Accessories:

    VT5K

    Transport case for TAG5000 with 500 kV antennas and accessories

    Option(s):

    QL

    Fast coupling and beam heading system



    以下是原TAG6000的产品资料,目前已不提供了,由TAG5000替代。

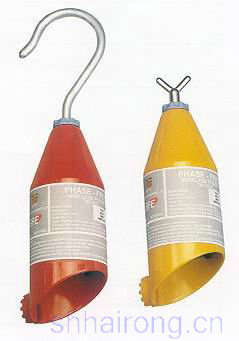

    TAG6000型无线高压核相器用于执行许多常规的电压表或核相器的现有功能。而且TAG6000型采用无线电频率的传输技术,去掉了引线并且减轻了这种重要测试装置的重量。

    TAG6000型的主要优点在于去掉了连接开路点两端的引线,使用起来要安全、简单。由于本仪器通过无线电信号来通讯,使用范围可以扩展到近10米,并且可以穿过围墙和隔板使用。同时,这种轻型的装置(发射器和接收器每个的重量分别是0.56kg和0.52kg)提高了使用的舒适度,可以一个人安全地操作两个仪器。在较高的电压情况下,安全性和简易的使用是首要因素,TAG6000型是您理想的选择之一。而且,这种装置可以穿过围墙和金属屏蔽来使用。

    TAG6000型包括两个部分。一个是电压探测器和发射器的联合装置,首先判断线路是否带电,然后发出有关导体相位的信号。另一个是接收装置,获得发射器发出的信号,然后在测试时用信号通知用户导体达到了同相。在使用中,首先对所有线路使用TAG6000的发射器,装置同线路进行接触,通过发出蜂鸣声和闪烁光确定它们带电。然后把发射器置于开路点的一端,接收装置依次置于开路点另一端的各个导体上,直至找到与发射器所在的导体同相位的线路。此时,接收器发出可以听见和看见的(发出一种稳定的声音以及红色的LED发光)信号,表明两个导体是同相的。
    TAG6000型作为标准的工具箱带有金属运输包装和架空线探头。没有引线,使用简单、方便、安全.

    电压设计范围:10Kv、35kV、110Kv、220Kv (相间电压)

    电源供应:发射器和接收器中均为9VDC碱性电池

    无线电传输能力:35英尺(10米)发射器和接收器用金属线连接,无线电传输能力10m 可穿过围墙和隔板。

    带电操作杆连接方法:接收器和发射器都在聚碳酸酯外壳内装有特定的卡盘

    运输包装:装置带金属包装箱

    尺 寸:39cm×26cm×12cm

    重 量:2.4kg,0.56Kg(E)、0.52Kg(R)

    信 号:声、光显示

    探 头:钩式探头(用于发射器)10cm×6cm Y型探头(用于接收器)5cm×5cm

    产地:法国。
