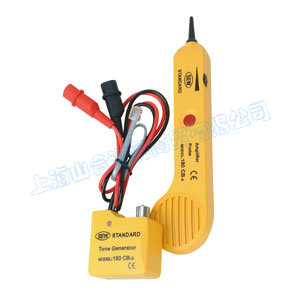

180 CB   Cable Tracer
180 CB
FEATURES

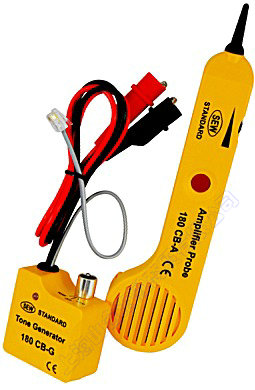

 AMPLIFIER PROBE (180 CB-A)
 The Amplifier Probe is designed to identify and trace wires or cables within a group without damaging the insulation
 Works with any Tone Generator to identify wires
 Volume control for increased sensitivity and adjustable to suit work enviornment
 Recessed ON/OFF button prevents battery drain
 Power supply is from any 9V battery with a life of approximately 100 hours
 A plug receptacle is designed for head set or hand set
 AMPLIFIER PROBE (180 CB-G)
 Tone Generator is a great tool for locating and identifying cable pairs or individual conductors
 Besides providing tone generator, tone generator serves as a continuity and polarity tester
 Test results are displayed by a three-colored led

SPECIFICATIONS

TONE GENERATOR
Waveform Square Wave
Frequeny 1.13KHz +/- 15%
Amplitude 9V P-P
Over Voltage Protection 100V DC
Single Tone yes
Alternating Tone yes
AMPLIFIER PROBE
Frequency Detection 1Hz - 12KHz
Receiver Distance 50 - 60 mm
Sensitivity Control yes
Connection RJ11 connector
GENERAL
Operating Temperature & Humidity 0 degree C ~ 40 degree C, 80% Max
Storage Temperature & Humidity -10 degree C ~ 50 degree C, 80% Max
Power Source Amplifier Probe : 9V battery, Tone Generator : 9V battery
Dimensions Amplifer Probe : 270(L) x 50(W) x 25(H) mm, Tone Generator : 62(L) x 58(W) x 34(H) mm
Weight Amplifer Probe : 125g (battery included), Tone Generator : 120g (battery included)
Safety Standard
Accessories Instruction manual, batteries, carry pouch
特 點
音頻接收器(180 CB-A)
● 搭配音頻發射器(180 CB-G),可以分辨或追蹤纜線或集團線中之一條,而不需要
破壞線的外層絕緣體。
● 可以搭配各種音頻發射器來使用。
● 設計有音量控制旋鈕,可以視工作環境的需要,調整聲音的大小。
● 偵測按鈕必須按下去,才可以開始動作。此項設計,可以防止電池無謂的消耗。
● 有外接耳機孔的設計。
● 使用一般的9V乾電池。

音頻發射器(180 CB-G)
● 搭配音頻接收器(180 CB-A),可以分辨或追蹤纜線或集團線中之一條,而不需要
破壞線的外層絕緣體。
● 有導通測試和分辨電話線極性的功能。
● 機殼內有音頻選擇推鈕,可視工作環境實際需要作音頻快速或緩慢的選擇。
● 設計有鱷魚夾和RJ11四芯的接頭。
規 格
音頻接收器 (180 CB-A)
頻率範圍 1Hz~12kHz
偵測距離 < 50cm
感度調整旋鈕 ˇ
電話接頭 RJ11
使用電池 9V乾電池x1(個)
外形尺寸 230(長) x 56(寬) x 27(高)公厘
重量 125公克(含電池)
音頻發射器(180 CB-G)
波形 方波
頻率範圍 1kHz±15%
過載保護 100V DC
音頻選擇 快速
電話接頭 RJ11
使用電池 9V乾電池x1(個)
外形尺寸 64(長) x583(寬) x 34(高)公厘
重量 120公克(含電池)
一般敘述
操作溫濕度 0°C-40°C Z大相對濕度80%
儲存溫濕度 -10~50C, Z大相對濕度80%
安規條款 EN 61326-1 EN 55011
EN 6100-4-2 EN 6100-4-3
