台湾标准电机SEW仪器仪表--2820 EL ELCB Testers Up To 1000mA



2820 EL   ELCB Testers
Up To 1000mA

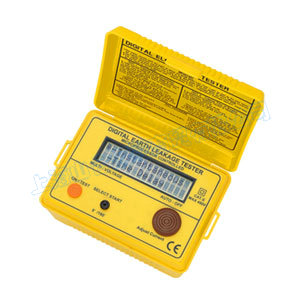

2820 EL
FEATURES

 Operating voltage 100-450V L-E.
 Rated current 999mA, at 317V AC/50Hz.
 Checks ELCB trip time and trip point (sensitivity).
 Auto-Off/Auto-Ranging.
 Phase angle selection (0 degree / 180 degree).
 Indicates tripping phase angle.
 Impact resistant enclosure.
 Over temperature shut-down.
 Transient protection.
 Suitable for heavy industrial use.
 Fused.
 , -1 CAT III 450V.
 OPERATING PRINCIPLES
 EARTH LEAKAGE TESTS
 The testers may be used to check the trip point (Test 1) of the ECLB or the trip time (Test 2). Test 1 is normally used on instantaneous ELCBs while Test 2 is normally used on inverse and fixed time-delay ELCBs.
 TEST PROCEDURE
 Test 1 - instantaneous ELCBs A ramp current, increasing at approximately 12 mA/s is introduced between L and E and the point at which the ELCB trips is recorded. To save time and reduce energy dissipation, the starting point of the ramp may be selected.
 Test 2 - inverse and fixed time delay ELCBs. Aconstant current is selected and injected between L-E and the tripping time is recorded.
SPECIFICATIONS

Trip Current-Range 0-1 A at 317V (Auto-Range Programmable)
Trip Current-Resolution 1mA
Operating Voltage (L-E) 100-450V
Phase Angle Setting 0 degree and 180 degree selectable
Timer-Max 99.999s
Timer-Resolution 1mS
Typical Accuracy
Trip-Current +/- 1%rdg +/-1mA
Trip-Time +/- 1%rdg +/-1dgt
Voltage +/- 3%rdg +/-1dgt
Operating-Temperature-Humidity -10 degree C to + 40 degree C, 80% max relative humidity
Power Source 1.5V (AA) x 8 batteries
Dimensions 170(L) x 120(W) x 95(D) mm
Weight Approx. 800g (battery included)
Accessories Test leads
Shoulder belt
Instruction manual
Batteries
特 點
● 微處理器系統控制設計。
● 操作電壓110-450V(L-E)。
● 檢查核對斷路器跳脫時間和跳脫電流。
● 可選擇相位(0度和180度)。
● 自動換檔。
● 自動關機。
● 過熱保護。
● 可供重工業設備量測。
● 保險絲保護。
● 符合 -1 CAT Ⅲ 450V
規 格 (23°C±5°C <80%R.H.)
跳脫電流檔位 0-1A在317V時(自動換檔)
跳脫電流解析度 1mA
操作電壓(L-E) 100 - 450V
相位選擇 0°與180°
測試Z長時間 99.999秒
時間解析度 1ms
跳脫電流準確度 ±(1%讀值+1mA)
跳脫時間準確度 ±(1%讀值+1位數)
電壓準確度 ±(3%讀值+1位數)
操作溫濕度 -10°C-40°C 80%
外形尺寸 170(長)×120(寬)×95(高)mm
重量 約800g(含電池)
使用電池 1.5V(AA)×8(顆)
