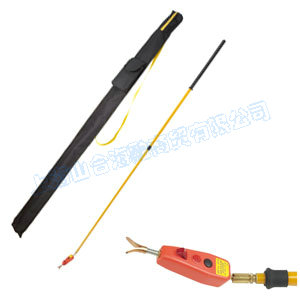

290 HD   High Voltage Testers
H.V. Detector
6kV ~ 81.5kV
290 HD
FEATURES

 Telescopic, compact, light-weight.
 Light weight easy to sue and handy.
 High-voltage detectable. The equipment, whether in stretched state is available for voltage detection in high-tension.
 Easy to recognize indication. Intermittent lighting in red of a high intensity light emitting diode and intermittent audible sound of an electronic buzzer are easy recognizable at a full daylight, noisy location.
 Water proof. The detecting head, being tightly enclosed, is free from any trouble due to dust, water.
 ,
 The detector detects high and extra high voltage in AC lines. An elongate insulation rod permits checking of high tension circuits at a safe distance for voltage. Also it is telescopic compact, light-weight, easy to sue and handy.
SPECIFICATIONS

Measuring Voltage Range 6kV ~ 81.5kV
Operation Start Voltage (To ground) 2.7kV
Display Light : flashing red light, Sound : intermittent sound 50 dB apart 3 m
Overall Length Retracted : 1370 +/- 50mm, Extracted : 2450 +/- 50mm
Frequency 50 / 60Hz
Operating Temperature -10 degree C ~ +50 degree C
Battery 2 button cells LR44 (1.5V)
Weight 590g (battery included)
Accessories Instruction manual, carrying case
COMMON RATINGS
Withstand Voltage (On insulating rod) 100kV / 300mm : 5 minutes
Insulation Resistance 2000M Ohm min. by 1kV/DC megger at the same testing location as withstand voltage
Leakage Current 100uA or less than 100uA at withstand voltage test
Construction Water proof (detecting head impervious to water)

特 點

● 使用玻璃纖維伸縮桿,方便使用與存放。
● 材質輕巧堅固,絕緣度良好。
● 具有自我測試功能設計,可判斷驗測前儀器的功能是否正常。
● 感測端部份可作角度調整並且作防水設計,具保護作用,不易損壞。

規 格

驗測範圍

6kV~81.5kV

起始電壓(接地)

2.7kV

適用頻率

50/60Hz

長度

縮短

1370±50mm

伸展

2450±50mm

絕緣棒耐壓

100kV/300mm : 5分鐘

絕緣狀況

1kV DC量測在2000MΩ以上

漏電電流

100μA或100μA以下

操作溫濕度

0C~40C

使用電池

鈕扣型(LR44)1.5V ×2(顆)

重量

約590g
