台湾标准电机SEW仪器仪表--4104 IN Insulation Testers Up To 5 kV



4104 IN   Insulation Testers
Up To 10 kV

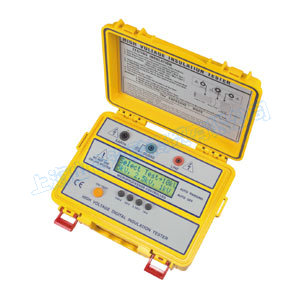

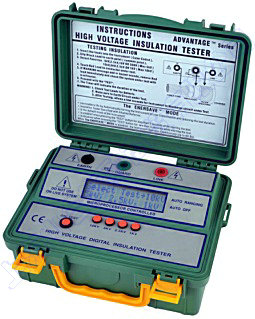

4104 IN
FEATURES

 2 lines x 16 characters large LCD.
 Smart microprocessor controlled.
 Four insulation test voltages.
 Insulation resistance auto-ranging on all ranges.
 Measures insulation time test.
 Bar-graph indicates test voltage-rise and decay can be observed during tests.
 Warning and display of external voltage presence.
 EnerSave (tm).
 Very low battery consumption.
 Low battery indicator.
 Over load protection.
 Auto-off.
 CAT III
SPECIFICATIONS

Test Voltage (DC V) 1kV / 2.5kV / 5kV / 10kV
Measuring Ranges (Auto-Ranges) 1kV : 0-50G Ohm, 2.5kV : 0-125G Ohm, 5kV : 0-250G Ohm, 10kV : 0-500G Ohm
Accuracy +/- 5%rdg
Output Power Limit 1W
Sealed With Gasket yes
Insulation Resistance Between Electrical Circuit and Houseing 2000M Ohm/200V
Withstand Voltage 700 Vac for one Min. between electrical circuit and case
Operation -15 degree C to 55 degree C up to 80%
Dimensions 250(L) x 190(W) x 110(D)mm
Weight Approx. 1.730kg (battery included)
Power Source 1.5V (SUM-3) x 8 Type AA
Accessories Test leads
Shoulder belt (BET-2800)
Instruction manual
Batteries
特 點
● 2行x16字的大型液晶顯示器。
● 使用微處理器系統控制設計。
● 絕緣阻抗量測電壓有4個檔位供選擇:1kV, 2.5kV, 5kV, 10kV。
● 顯示量測時間。
● 類比刻劃顯示測試電壓狀況。
● 有外來電壓警示功能。
● 耗費電源微小。
●過載保護。
●電源不足顯示。
●自動關機。
● 符合CAT Ⅲ
規 格 (23°C±5°C <80%R.H.)
量測檔位 1kV / 2.5kV / 5kV / 10kV
量測範圍(自動換檔) 0-50GΩ / 0-125GΩ / 0-250GΩ / 0-500GΩ
準確度 ±5% 讀值
外形尺寸 205(長) × 190(寬) × 110(高)mm
重量(含電池) 約1900g
使用電池 1.5V(AA)×8(顆) 鹼性電池
