6221 EL   ELCB Testers
Up To 1000mA

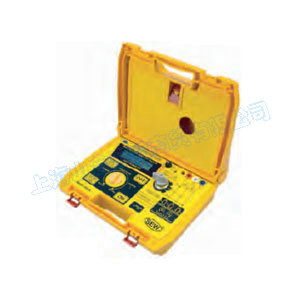

6221 EL
FEATURES

 Indicates Phase Rotation.
 Indicates Phase Presence.
 TEST for Disconnectino Sensitivity.
 Indicates Battery Status.
 TEST for Disconnectino Time.
 Measure Voltage Phase to Earth.
 Select One of 3 Phase to test ELCB.
 Color Coded test Leads.
 Phase Presence Indication from as low as 100Vac.
 Works from 8 x C size 1.5V Battery.
 Very Low Consumption.
 Fused Earth Leakage Tester.
 Lightweight, Robust & Compact.
 ELCB Works 50Vac to 330Vac 50Hz / 60Hz.
 Led indication of Voltage on ELCB.
 Phase Rotation and Presence does not require battery to indicate.
  CAT III 550V.
 Dimensions : 330(L) x 260(W) x 160(D) mm
 Weight : 3.85 kg (battery included)
 Batteries : 1.5V "C" x 8, Bat OK Led = Vbat > 9V
 This Test Instrument is a combined 3 Phases Presence and Rotation Indicator combined with a 3 Phases Industrial Earth Leakage Tester. When utilized as a 3 Phase Presence and Rotation Indicator, the instrument does not use the batteries and can still be utilized if the batteries are not present or if the batteries are too low.
 The 3 phase Presence and Rotation Indicator which is indise the 6221 EL, takes it's power from the circuit under test. The Earth Leakage can be utilized on a Single Phase (up to 317Vac Line to Earth) or a 3 Phase Powered System (550V line to Lilne or Phase to Phase) with a protective Earth conductor.
 The Earth Leakage requires batteries. When utilized on a single phase ensure correct connection between Line and Earth before using the tester.
 When utilized on a 3 Phase Powered System, the instrument is then utilized as a 3 Phases Presence and Rotation Indicator and a Earth leakage tester (selecting which phase to Earth will be utilized for the ELCB test).
 When utilized on a 3 Phase Powered System, this instrument is a rotary field indicatino instrument which display all three phases by lighting up it's corresponding Lamp. It display the rotation (clockwise or anti-clockwise) on a LED.
 To test the tripping time or the tripping current of a Earth Leakage Circuit Breaker, make sure to connect the earth wire. This instrument represents the quickest and easiest way for servicing, repairing and electrical maintenance of 3 phase system with earth leakage.
 With this equipment, you can, before connecting Load to Supply : on the supply side; Quickly verify the presence of the three Phases on a 3 Phases Power System. Confirm the Phase Rotation on a Powered 3 Phase System. Test the Tripping (disconnection) current and time of the protections.
SPECIFICATIONS

Determinatino of the Phase Presence Nominal Voltage for Phase Presence Indication (the voltage required for the neon lamps L1, L2, L3 to lip up) ...... From 10 Hz to 400 Hz.
Determination of the Phases Rotary Field Direction Direction (the voltage required to have the direction LEDs L1-L2-L3 or L2-L1-L3 to indicates ...... From 100 to 450Vac.
Frequency Range ...... From 2 Hz to 400 Hz
Protection Over load ...... 550V (between all terminals)
Over voltage ...... Class III - 450V towards ground.
EARTH LEAKAGE
Current Settings 999mVac / 50 Hz - 60 Hz
Current Selection Knob
Phase Start Selection 0 degree and 180 degree
Over-Temperature Protection Yes
Phase Polarity Trip Indicator Yes
Operating Voltage (L-E) 110Vac to 317Vac
Timer Resolution 1mS (Max Time = 99.99s)
Timer Accuracy 1mS +/- 4mS
Current Resolution 1mA
Voltmeter Accuracy (50 Hz) 50-350 Vac = +/- 3% +/- 2V, 350 -550 Vac = +/- 7% +/- 3V
Voltmeter Resolution 1V
Maximum Current Specified At 317Vac / 50 Hz
Operating Temperature Range -15 degree C to +55 degree C
Storage Temperature -20 degree C to +70 degree C
特 點---數位式漏電斷路器檢測計6221 EL
● 可作三相的ELCB測試。
● 可指示相序(順相或逆相)狀況。
● 可指示缺相情形。
● 可顯示漏電電流的靈敏度和跳脫時間。
● 電池電量指示燈設計。
● 可量測相對地電壓。
● 低消耗電池能量。
● 測洩漏電流有保險絲保護設計。
● 漏電電流檢測從50V~300Vac(50/60Hz)。
● ELCB測試有LED指示。
● 作相序和缺相測試不需消耗電池能量。
● 通過歐洲安規驗證EN 61010-1 CAT Ⅲ 550V
EN 61326-1
規 格 (23°C±5°C <80%R.H.)
功 能 相位檢測 相序檢測
指示方式 氖燈指示 LED指示
操作電壓 100-450V ac 100-450 Vac
適用頻率 10-400Hz 2-400Hz
負載電壓 550V(兩極插之間)
過載電壓 約450V(對地)
溫度過載保護
跳脫指示
時間解析度 1毫秒 (Z長時間99.9秒)
電流容許誤差 ±3%±4mA
電壓容許誤差 50-350Vac:±3%±2V,350-550Vac:±7%±3V
使用電池 1.5V(C型)×8 鹼性電池
操作溫濕度 0°C-40°C 80%Z大相對濕度
儲存溫濕度 -10°C-50°C 80%Z大相對濕度
外形尺寸 330(長)×260(寬)×160(高)mm
重量 約3.85公斤(含電池)
漏電斷路器檢測
電流設定 0-999mAac/50-60Hz
電流設定方式 旋鈕操作
操作電壓 220-317Vac
相位選擇 0°或180°
特 點---漏電斷路器檢測計/檢相計(OLED顯示)6221 EL-M
● 可作三相的ELCB測試。
● 可指示相序(順相或逆相)狀況。
● 可指示缺相情形。
● 可顯示漏電電流的靈敏度和跳脫時間。
● 電池電量指示燈設計。
● 可量測相對地電壓。
● 低消耗電池能量。
● 測洩漏電流有保險絲保護設計。
● 漏電電流檢測從50V~300Vac(50/60Hz)。
● ELCB測試有LED指示。
● 作相序和缺相測試不需消耗電池能量。
● 通過歐洲安規驗證
EN 61010-1 CAT Ⅲ 550V
EN 61326-1
規 格 (23°C±5°C <80%R.H.)
功 能 相位檢測 相序檢測
指示方式 氖燈指示 LED指示
操作電壓 100-450V ac 100-450 Vac
適用頻率 10-400Hz 2-400Hz
負載電壓 550V(兩極插之間)
過載電壓 約450V(對地)
溫度過載保護
跳脫指示
時間解析度 1毫秒 (Z長時間99.9秒)
電流容許誤差 ±3%±4mA
電壓容許誤差 50-350Vac:±3%±2V,350-550Vac:±7%±3V
使用電池 1.5V(C型)×8 鹼性電池
操作溫濕度 0°C-40°C 80%Z大相對濕度
儲存溫濕度 -10°C-50°C 80%Z大相對濕度
外形尺寸 330(長)×260(寬)×160(高)mm
重量 約3.85公斤(含電池)
漏電斷路器檢測
電流設定 0-999mAac/50-60Hz
電流設定方式 旋鈕操作
操作電壓 220-317Vac
相位選擇 0°或180°
