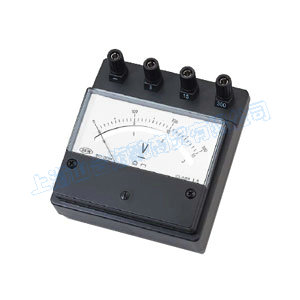

ED-305   Panel Meters
Bench Type
ED-305
FEATURES

 Precision meters for plant maintenance, field servicing and educational purposes.
 Taut Band movement with rectifier type.
 Multi terminals (4mm socket) for range selection.
 Carbon pointer, mirror scale to eliminate parallax error.
 High resistance to shock and vibration.
SPECIFICATIONS

Accuracy +/- 1.5% F.S.
Scale length 80mm
Dimension 107(L) x 117(W) x 53(D)mm
Weight Approx. 300g
● 用於學校的電學教學和訓練,工廠、農牧場電力設備比對和維護
● 高品質的吊線式防震表頭
● 4公厘的多功能極插座
● 刻度板反射鏡設計,降低視差影響
● 橡膠腳墊設計,防止滑動、震動
● 準確度 : ±1.5%滿刻度
● 刻度長 : 80公厘
● 材質 : 上蓋壓克力,底ABS
● 外型尺寸 : 107(長) × 117(寬) × 53(高)公厘
● 重量 : 約300公克
