台湾标准电机SEW仪器仪表--ITC-8 Resistor Calibration Box

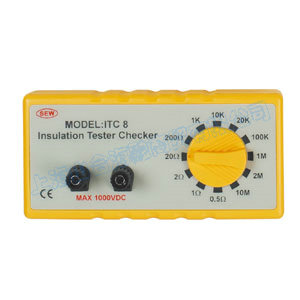

ITC-8   Resistor Calibration Box
ITC-8
FEATURES

 The ICT-8 can be utilized to check calibratino of resistance ranges of insulation testers and multimeters.
 The resistance checker box is also used to verify insulation testers and multimeters.
SPECIFICATIONS

Resistance Ranges 0.5 Ohm, 1 Ohm, 2 Ohm, 20 Ohm, 200 Ohm, 1k Ohm, 10k Ohm, 20k Ohm, 100k Ohm, 1M Ohm, 2M Ohm, 10M Ohm
Accuracy 0.5 Ohm ~ 2 Ohm : +/- 0.05 Ohm
20 Ohm ~ 10M Ohm : +/- 1%
Dimensions 150(L) x 72(W) x 60(D)mm
Weight Approx. 180g
Safety Standard CAT III 1000Vdc
EN 55011, EN 61000-4-2, EN 61000-4-3
