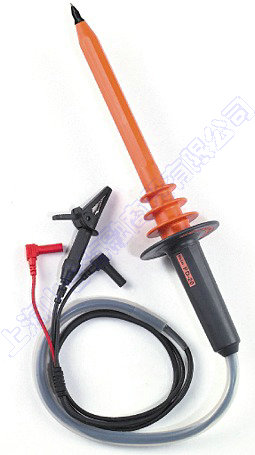

PD-28   High Voltage Testers
H.V. Probe
Input Impedance : 1000M Ohm
PD-28
FEATURES

 PD-20 and PD-28 have the same shape and color but different specifications.
 Meet
 PD-28 is a high voltage probe that is used with DMM
 PD-20 and PD-28 are high voltage probes. They measure both AC and DC voltages with your multimeter. They consist of 2 kinds of contact tips, a test clip for the ground, a set of test leads for multimeter and a high qualify enclosure. The enclosure has very good insulation properties.
 They are lightweight and ruged. Two kinds of contact tips are avaialble. One is a round needle tip for normal use. Another is a special flat spring type for CRT anode.
 Before taking any measurements, first connect the alligator clip of this probe to earth ground and amke sure connection is proper.
SPECIFICATIONS

Input Impedance 1000M Ohm.
Attenuation Ratio 1000 : 1
Accuracy DCV (0 ~ 20kV) +/- 1%, DCV (20kV ~ 40kV) +/- 2%, ACV (0 ~ 28 kV) typically +/- 5% at 60Hz
Max. Working Voltage 40kV DC or 28kV AC
Operating Temperature 0 degree C ~ 50 degree C
Storage Temperature -10 degree C ~ 60 degree C
Cable Length 1m
Weight Approx. 260g
特 點
● 必須配合數位式三用電表使用。
● 可量測交流電壓與直流電壓。
● 適用頻率:50/60Hz。
● 材質輕巧、耐壓絕緣度良好。

規 格

內 阻 1000MΩ
衰減比例 1000 : 1
量測範圍及準確度 直流電壓(DCV):0-20kV:±1%
20kV-40kV:±2%
交流電壓(ACV):0-28kV:±5%
操作溫度 0°C ~ 50°C
接地線長度 1公尺
重 量 約260g
