ST-2550   Insulation Testers
Up To 1 kV (Digital)

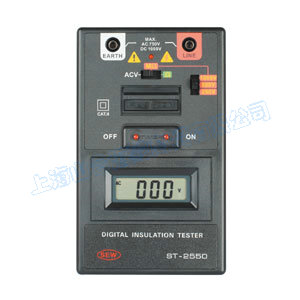

ST-2550
FEATURES

 A LCD indicated instrument for Insulation (M Ohm), Continuity (Ohm) and AC Voltage.
 Instant operation is possible with a push button.
 In additon, for continuous measurement of M Ohm or ACV, a convenient timer is provided iwth automatic power off after three to five minutes to save the battery power.
 LED (red) indication when testing insulation and continuity.
 Use of a high efficiency and accurate DC-DC converter.
 Auto ranging.
 Most suitable for insulation resistance measurement of electrical household appliances, power line distribution and installation.
  CAT II 600V.
SPECIFICATIONS

INSULATION RESISTANCE
Test Voltage (DC V) 250V/500V/1000V
Output Voltage Open Circuit + 10%
Measuring Ranges (Auto) 0-20/0-200/0-2000M Ohm
Accuracy 0-20M Ohm : +/- (1.5%rdg+2dgt), 0-200M Ohm : +/- (2.5%rdg+2dgt), 0-2000M Ohm : +/- (5%rdg+3dgt)
CONTINUITY TEST RANGES
Measuring Ranges 200 Ohm
Short Circuit Current 11mA
Accuracy +/- (1.5%rdg+2dgt)
Buzzer Sounds Below 10 Ohm
AC VOLTAGE RANGE
Range 0-600V AC
Accuracy +/- (1.5%rdg+2dgt)
GENERAL
Dispaly LCD 3-1/2 (2000 counts)
Impedance 10M Ohm
Power Source 1.5V (SUM-3) x 6 Type AA
Dimensions 163(L) x 100(W) x 50(D)mm
Weight Approx. 440g (battery included)
Accessories Test eads, heavy-duty case, instruction manual, batteries
