ST-1505   Earth Resistance Testers
3 Wire (Analog)

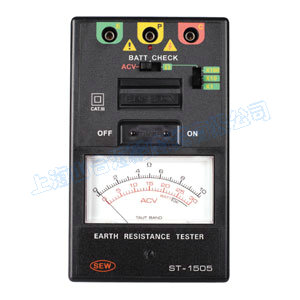

ST-1505
FEATURES

 High quality Taut Band movement.
 Capable of measuring earth voltage (Vac).
 The timer operates automatically for about three to five minutes when the "PUSH BUTTON SWITCH" and "TIMER ON BUTTON" are pressed together. This will keep test "ON" for the duration of the timer.
 Battery life indication.
 Battery replacement can be easily made without removing the caring case.
  CAT II 30V.
 Calibration performed with supplied test leads.
SPECIFICATIONS

Measuring Ranges Earth Resistance : 0-100 Ohm/0-100 Ohm/0-1000 Ohm
Earth Voltage : 0-30V AC (40-500Hz)
Accuracy Earth Resistance : +/- 3% of full scale
Earth Voltage : +/- 2.5% of full scale
Measuring System Earth resistance by constant current inverter (Square Signal) 820 Hz approx. 2mA
Power Source 1.5V (SUM-3) x 6 Type AA
Dimensions 163(L) x 100(W) x 50(D) mm
Weight Approx. 460g (battery included)
Accessories Test leads (AL-36: red-15m, yellow-10m, green-5m)
Auxiliary earth bars (TEL-1505)
Heavy-duty case (TOC-1505)
Instruction manual
Batteries
特 點
● 吊線式高品質防震表頭。
● 可供量測接地電阻(Ω)和接地電壓(ACV)。
● 在量測接地電阻時,同時壓下"PUSH ON"和"TIMER
ON"可作長時間量測,約經5分鐘,會自動關機。
● 使用電池操作。
● 電池電量指示。
● 可作接線狀況檢查。
● 符合 CAT II 30V。

規 格 (23°C±5°C <80%R.H.)
檔位測試 接地電阻 : 0-10Ω/0-100Ω/0-1000Ω
接地電壓 : 30V AC(40-500Hz)
準確度 接地電阻 : ±3%滿刻度
接地電壓 : ±2.5%滿刻度
量測系統 820±15Hz 2mA定電流
外形尺寸 163(長)×100(寬)×50(高)mm
重量 約460克(含電池)
使用電池 1.5V(AA)×6(顆)
